Solar Panel

Solar Panel

Home Solar Panel

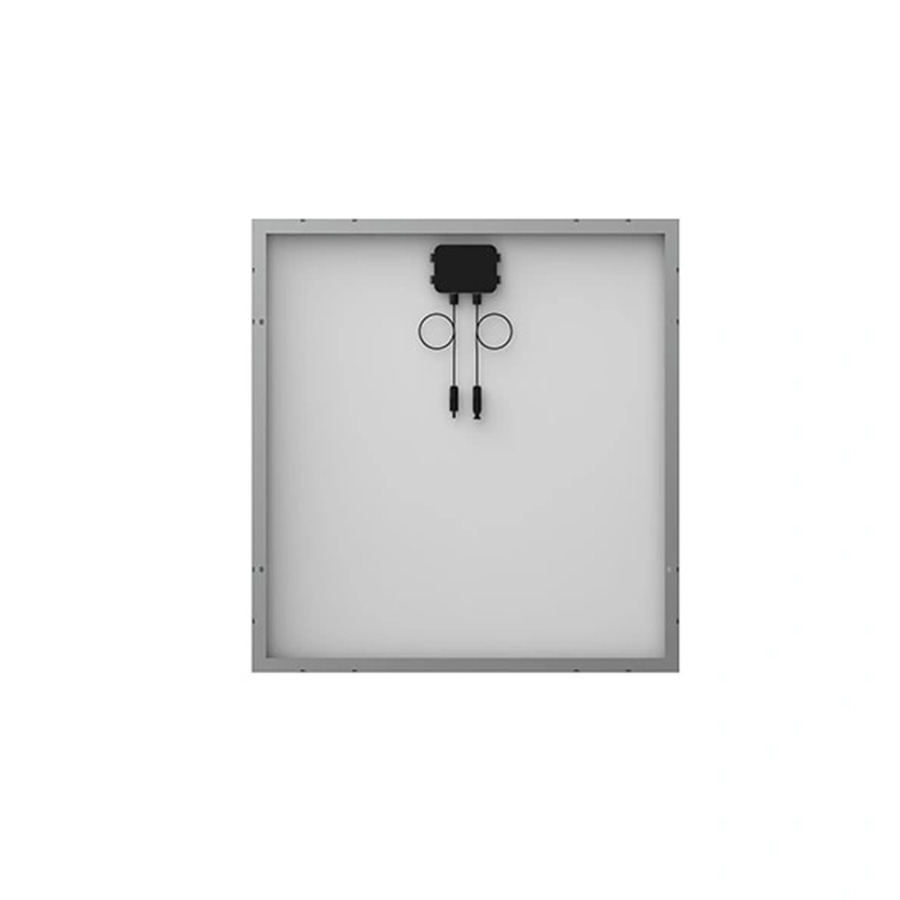

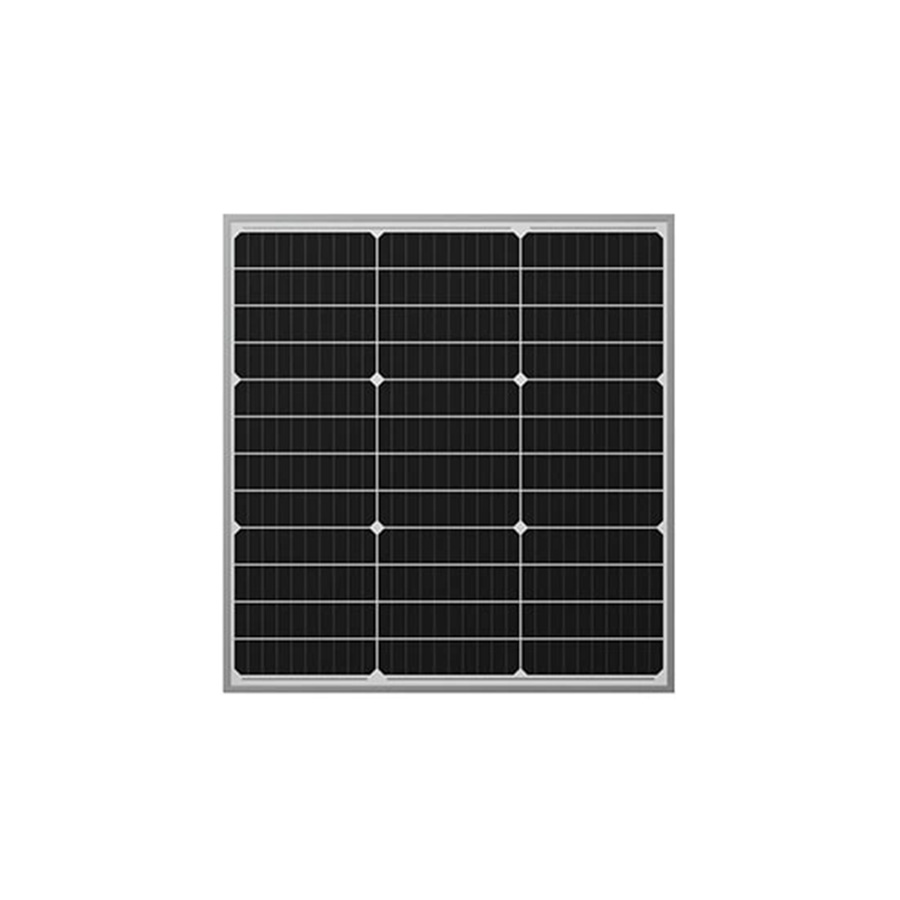

60W Customized Available Small Solar Panels

60W Customized Available Small Solar Panels
60W Customized Available Small Solar Panels
60W Customized Available Small Solar Panels

60W Customized Available Small Solar Panels

Cost-Effective 60W Mono Solar Panels with Customized Service, Widely Used in Off-Grid Installations, Street Lights and Small PV Projects

  • Item No :

    FG-60W

  • Power :

    60W

  • Dimension :

    615×580×25 mm

  • Min Order :

    100PCS

  • Efficiency(%) :

    18.22%

  • Weight :

    3.75kg

  • Cells Number :

    36
Inquiry Now
Download

60W 65W 182mm Mono Solar Panels

60W 65W

CORE PERFORMANCE FEATURES

01

High Efficiency Monocrystalline Cells

Equipped with 36 (3x12) Monocrystalline Cells measuring 182x45.5 mm, delivering reliable energy yield and up to 18.22% efficiency.

02

Compact & Portable Design

Measuring just 615*580*25mm and weighing only 3.75kg, it is highly adaptable for small-scale applications, RVs, and marine use.

03

Robust & Certified Reliability

Features 3.2mm high transmission low iron tempered glass. The junction box is IP65/IP67 approved for maximum safety and weather resistance.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front Glass : 3.2mm high transmission low iron, tempered glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 2.5mm² cable, 50cm length
Connectors: MC4 Compatible | Junction box: IP65/IP67

IDEAL APPLICATIONS

The 60W-65W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

RVs & Marine Boats
Off-Grid Cabins
Solar Street Lighting
IoT & Remote Sensors

MECHANICAL DATA

Dimensions (L×W×T) 615 x 580 x 25 mm
Cell Type 182x45.5 Mono
Number of Cells 36 (3x12)
Weight 3.75 kg
Front Glass 3.2mm high transmission
low iron, tempered glass
Frame Material Anodized Aluminium Alloy
Junction Box IP65/IP67
Output Cables 2.5mm² cable 50cm+mc4
Max Wind Load / Snow Load 2400Pa / 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FG 60M-36 FG 65M-36
Standard Test Conditions STC STC
Peak Power (Pmax) 60W 65W
Maximum Power Voltage (Vmp) 20.26V 20.43V
Maximum Power Current (Imp) 2.97A 3.19A
Open Circuit Voltage (Voc) 23.63V 23.80V
Short Circuit Current (Isc) 3.13A 3.37A
Module Efficiency (%) 16.82% 18.22%

TEMPERATURE & MAXIMUM RATING

Maximum System Voltage (V) 1000
Maximum Series Fuse Rating (A) 10
Power Tolerance 0~+3%
Pmax Temperature Coefficients (W/°C) -0.350%
Voc Temperature Coefficients (V/°C) -0.270%
Isc Temperature Coefficients (A/°C) +0.048%
NOCT Nominal Operating Cell Temperature (°C) 45±2
Operating and Storage Temperature (°C) -40 ~ +85

PACKAGING INFORMATION

20FT Container
10 Packages / 2322 PCS
40HQ Container
18 Packages / 5472 PCS
01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: How much does this 60W panel actually weigh? Can I carry it in a backpack?
A1:
This panel typically weighs only 3.5–4.5 kg (7.7–10 lbs) and measures about 700mm × 540mm (27.6″ × 21.3″). While you could carry it in a large backpack, it's better suited for a dedicated carrying case. For true backpacking (hiking miles), consider our flexible or 20W-30W panels.
Q2: Does this panel have a built-in USB port to charge phones or tablets directly?
A2:
Not as a standard feature, but we can add a weatherproof dual USB port (5V/2.4A) to the junction box as a low-cost customization. This lets you charge smartphones, tablets, or LED lights directly without a separate controller – perfect for a simple camping or emergency kit. Without this, you'll need an external USB adapter.
Q3: Will this 60W panel produce any useful power on a deeply overcast winter day or in a shaded yard?
A3:
Yes, but very little – roughly 5-15% of rated power (3-9 watts). That's still enough to trickle-charge a small battery (e.g., maintain a motorcycle battery) but not to run a device directly. For shaded areas, we recommend our amorphous silicon (thin-film) panels or over-paneling (using a larger panel with a small controller). Ask our sales team for shade-optimized options.
Q4: What is the smallest charge controller I can use with this 60W panel for a 12V system?
A4:
For a 12V battery, the panel's maximum current is about 3.3A (60W ÷ 18V). Therefore, a 6A or 10A PWM controller is perfectly matched and widely available. We can supply a tiny potted (waterproof) 10A controller as part of a custom kit – small enough to fit inside a junction box or battery box.
Q5: Can I mount this 60W panel indoors on a sunny windowsill or balcony wall?
A5:
You can, but indoor glass significantly reduces output (by 50-90% depending on coatings). For indoor use, we recommend mounting it outside the window or on a sunny balcony railing. If indoor is your only option, consider our high-efficiency IBC cell panels (available as a custom upgrade) or use the panel as a supplemental charger rather than a primary power source.
Q6: Can this 60W panel directly charge a small 12V motorcycle or lawn tractor battery?
A6:
Yes, it's ideal for that. A 60W panel (Vmp ~18V) is perfectly sized for maintaining or slowly charging small 12V batteries like those in motorcycles, ATVs, lawn tractors, or jet skis. Always use a small charge controller (e.g., 10A PWM) to prevent overcharging, as these batteries have small capacity.
