Solar Panel

Solar Panel

Home Solar Panel

685W-705W Solar Panel 210-210mm Mono PV Module

685W-705W Solar Panel 210-210mm Mono PV Module

685W-705W Solar Panel 210-210mm Mono PV Module

High-Efficiency 685W-705W Solar Panel with 210mm Monocrystalline Cells, Reliable PV Module for Large-Scale Solar Power Systems and Industrial Energy Solutions

  • Item No :

    FG685W-G12

  • Power :

    685W-705W

  • Dimension :

    2384×1303×35 mm

  • Min Order :

    32PCS

  • Efficiency(%) :

    22.70%

  • Weight :

    38.5 kg

  • Cells Number :

    132
Inquiry Now

G12R 685W 690W 695W 700W 705W 210mm Solar Cell N-Type BIFACIAL Half Cut Solar Panels

685W 690W 695W 700W 705W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 132 monocrystalline half-cut N-Type cells (210mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 61215/IEC 61730 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm coated semi-tempered glass
Frame: Anodized aluminium alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-) , Length can be customized.
Connectors: Mc4 compatible

IDEAL APPLICATIONS

The G12 685W-705W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Utility-Scale PV Plants
Commercial Rooftops
Industrial Plant Installations
Solar Carports

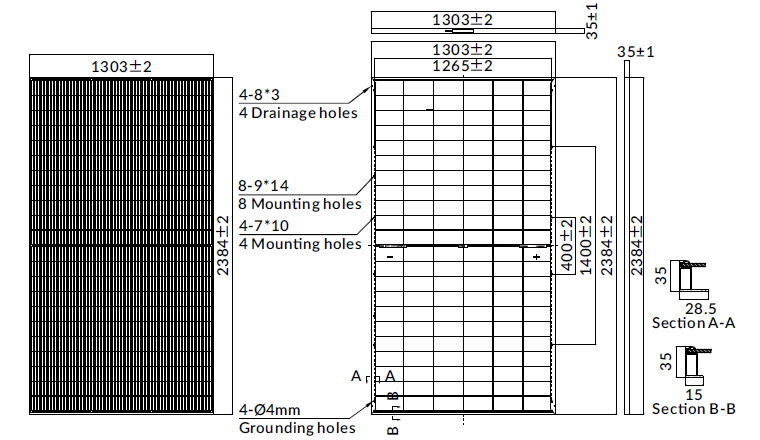

MECHANICAL DATA

Dimensions 2384 × 1303 × 35 mm
Weight 38.5 kg
Cell Type N-type Mono
Junction Box Ip68 rated (3 by pass diodes)
Number of Cells 132 (6x22)
Output Cables 4.0mm², Length can be customized
Front/Back Glass 2.0mm coated semi-tempered glass
Connectors Mc4 compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test Front 5400Pa/Rear 2400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-685ND FGET-690ND FGET-695ND FGET-700ND FGET-705ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 685W 690W 695W 700W 705W
Open Circuit Voltage (Voc) 48.02V 48.22V 48.42V 48.61V 48.80V
Short Circuit Current (Isc) 18.22A 18.26A 18.30A 18.34A  18.38A
Voltage at Maximum power (Vmpp) 39.78V 40.00V 40.22V 40.44V 40.66V
Current Maximum Power (Impp) 17.22A 17.25A  17.28A 17.31A 17.34A
MODULE EFFICIENCY (%) 22.05% 22.21% 22.37% 22.53% 22.70%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-685ND FGET-690ND FGET-695ND FGET-700ND FGET-705ND
5% Maximum power (Pmax) 719W 725W 730W 735W 740W
Module Efficiency STC (%) 23.15% 23.32% 23.49% 23.66% 23.83%
15% Maximum power (Pmax) 788W 794W 799W 805W 811W
Module Efficiency STC (%) 25.36% 25.54% 25.73% 25.91% 26.10%
25% Maximum Power (Pmax) 856W 863W 869W 875W 881W
Module Efficiency STC (%) 27.56% 27.77% 27.97% 28.17% 28.37%



PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets. Each pallet contains 32 modules , and a standard 40' HQ container safely accommodates 576 modules  (18 pallets).

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What type of solar cell does this module use?
A1:
This PV module uses 210-210mm monocrystalline silicon cells, featuring high efficiency and strong stability.
Q2: What are the typical application scenarios for this solar panel?
A2:
It is mainly used in large ground-mounted power stations, industrial and commercial photovoltaic systems.
Q3: What are the advantages of using 210mm cells in this module?
A3:
210mm large-size cells help improve module power, increase conversion efficiency and reduce project system costs.
Q4: What are the standard dimensions & weight for this solar panel?
A4:
For this G12N 700W-720W series, the exact dimensions are 2382 × 1303 × 33 mm, and each panel weighs 38.5 kg.
Q5: What is operating temperature range for solar panel?
A5:
-40°C to 85°C (-40°F to 185°F). Efficiency slightly drops in extreme heat; voltage may rise in cold conditions.
Q6: Does power output vary much under different light conditions?
A6:
Output peaks in direct sunlight; drops significantly on cloudy days, winter, or with shading. High-quality panels perform better in low light.
