520W-540W Half Cut 182-182mm Bifacial Solar Panels

520W-540W Half Cut 182-182mm Bifacial Solar Panels

520W-540W Half Cut 182-182mm Bifacial Solar Panels

Tired of Installing Too Many Panels? – Get 520W to 540W Per Module with 182-182mm Half-Cut Bifacial Design, Cutting Module Count by 15% While Adding Rear-Side Energy Capture for Ground-Mount and Commercial Arrays

  • Item No :

    FG540W-M10N

  • Power :

    520W-540W

  • Dimension :

    2094x1134x33mm

  • Min Order :

    33PCS

  • Efficiency(%) :

    22.74%

  • Weight :

    25.3kg

  • Cells Number :

    132
Inquiry Now

132 Cells 520W 525W 530W 535W 540W 182-182mm Solar Cell Mono N-Type Half Cut Solar Panels

520W 525W 530W 535W 540W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 132 monocrystalline half-cut N-Type cells (182x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium black frame that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC61215/IEC61730 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front Glass: 3.2mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The 520W-540W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Residential Rooftop Solar
Backyard Solar Systems
Microgrid Solar Plants
Railway Station Solar

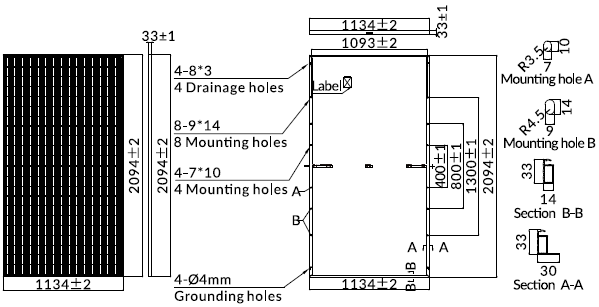

MECHANICAL CHARACTERISTICS

Solar Cells N-type Mono
Junction Box Ip68 rated (3 by pass diodes)
No. of Cells 132 (6x22)
Output Cables 4.0mm², 250mm (+) / 350mm (-)
Front Glass 3.2mm coated tempered glass
Connectors Mc4 compatible
Frame Anodized aluminium alloy
Mechanical load test Front 5400Pa/ Rear 2400Pa
Dimensions 2094x1134x33mm
Weight 25.3kg

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

POWER CLASS FGET-520N FGET-525N FGET-530N FGET-535N FGET-540N
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 520W 525W 530W 535W 540W
Open Circuit Voltage (Voc) 47.03V 47.22V 47.41V 47.60V 47.78V
Short Circuit Current (Isc) 14.14A 14.21A 14.28A 14.35A 14.42A
Voltage at Maximum power (Vmpp) 39.36V 39.53V 39.70V 39.87V 40.03V
Current Maximum Power (Impp) 13.21A 13.28A 13.35A 13.42A 13.49A
MODULE EFFICIENCY (%) 21.90% 22.11% 22.32% 22.53% 22.74%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing. (34 pieces per pallet, 748 pieces per 40'HQ)

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: About cable, connector and mounting design?
A1:
It comes with 4.0mm² cables and MC4 compatible connectors. Reserved mounting and grounding holes fit standard brackets, cable length can be customized per project demands.
Q2: What’s the working temperature range?
A2:
Working temperature ranges from -40℃ to +85℃. It keeps stable performance in extreme cold and hot weather, anti-sand, anti-rain and anti-humidity for long-term outdoor operation.
Q3: Can it save overall project cost?
A3:
520W-540W high power reduces about 15% module quantity in same capacity. It cuts expenditure on brackets, cables, installation labor and later daily maintenance greatly.
Q4: How about packaging and shipping condition?
A4:
Packed with export standard wooden pallets, no secondary stacking needed. Passed vibration and temperature cycle tests, fully meeting international sea transportation standards safely.
Q5: Is this module suitable for ground-mounted PV power stations with high albedo?
A5:
It is highly suitable for ground-mounted systems, as rear-side reflection can significantly boost its power generation performance.
Q6: How to select model for your project?
A6:
Confirm by power consumption, installation space, budget and on/off-grid type. This 520W-540W model is cost-effective for residential, commercial and large ground solar farms.
