Solar Panel

Solar Panel

Home Solar Panel

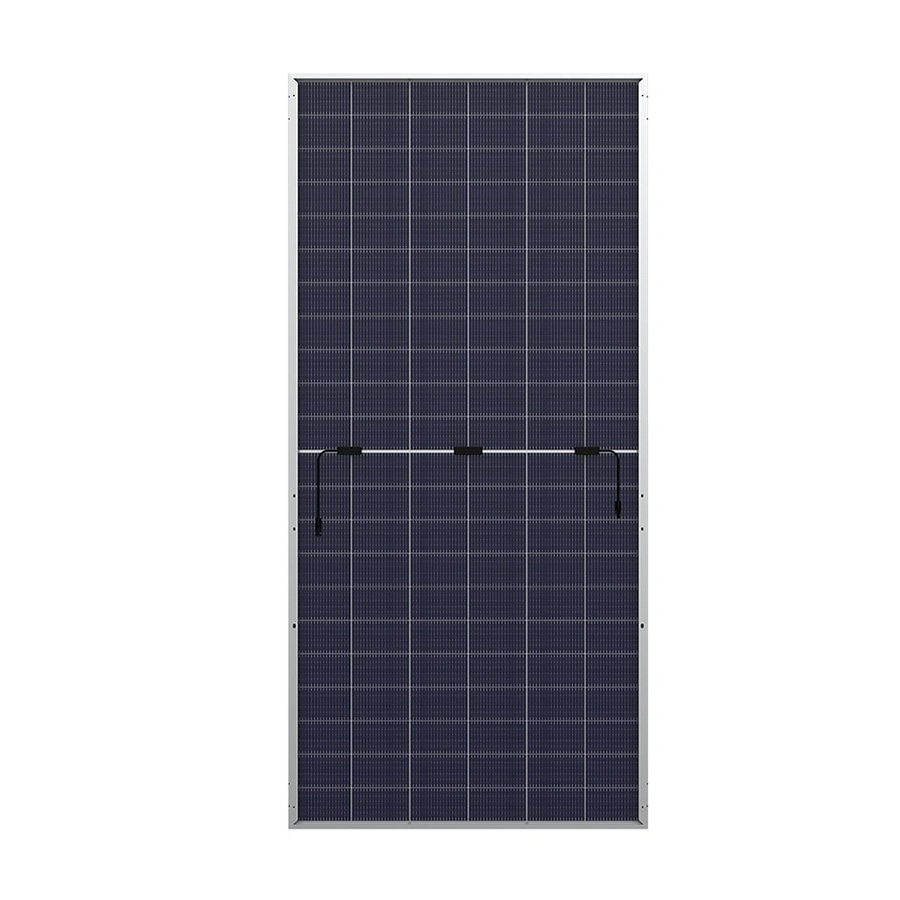

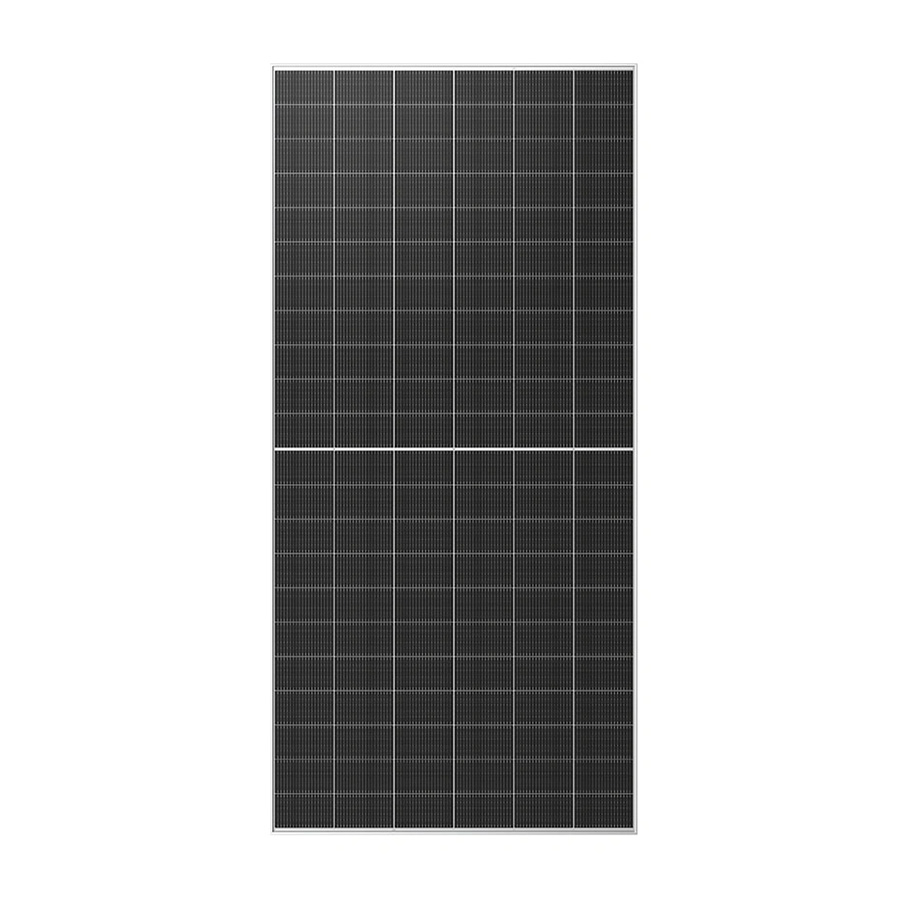

605W-625W Bifacial Solar Panel 210-182mm Mono PV Module

605W-625W Bifacial Solar Panel 210-182mm Mono PV Module
605W-625W Bifacial Solar Panel 210-182mm Mono PV Module
605W-625W Bifacial Solar Panel 210-182mm Mono PV Module

605W-625W Bifacial Solar Panel 210-182mm Mono PV Module

605W–625W High Power Bifacial Mono Solar Panel, 210×182mm Large Cell PV Module with Double Glass Design, Maximizing Backside Power Gain for Commercial Ground Mount & Energy Storage Projects

  • Item No :

    FG620W-G12R

  • Power :

    605W-625W

  • Dimension :

    2382×1134×33 mm

  • Min Order :

    33 PCS

  • Efficiency(%) :

    23.62%

  • Weight :

    30 kg

  • Cells Number :

    132
Inquiry Now

FGET G12R 605W 610W 615W 620W 625W 210-182mm Bifacial Solar Panel Mono PV Module

605W 610W 615W 620W 625W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 132 monocrystalline half-cut N-Type cells (210x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The G12R 605W-625W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Commercial Rooftops
Utility-Scale Solar Farms
Industrial Facilities
Solar Carports & Canopies

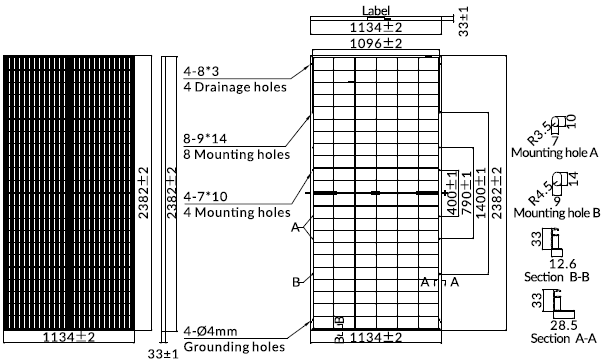

MECHANICAL DATA

Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 132 (6x22)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGT-605ND FGT-610ND FGT-615ND FGT-620ND FGT-625ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 605W 610W 615W 620W 625W
Open Circuit Voltage (Voc) 48.75V 48.94V 49.13V 49.32V 49.51V
Short Circuit Current (Isc) 15.08A 15.19A 15.30A 15.41A 15.52A
Voltage at Maximum power (Vmpp) 40.55V 40.71V 40.87V 41.03V 41.19V
Current Maximum Power (Impp) 14.92A 15.01A 15.05A 15.11A 15.17A
MODULE EFFICIENCY (%) 22.88% 23.07% 23.25% 23.44% 23.62%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGT-605ND FGT-610ND FGT-615ND FGT-620ND FGT-625ND
5% Maximum power (Pmax) 635W 641W 646W 651W 656W
Module Efficiency STC (%) 24.02% 24.22% 24.41% 24.61% 24.80%
15% Maximum power (Pmax) 696W 702W 707W 713W 719W
Module Efficiency STC (%) 26.31% 26.53% 26.74% 26.98% 27.20%
25% Maximum Power (Pmax) 756W 763W 769W 775W 781W
Module Efficiency STC (%) 28.60% 28.84% 29.06% 29.31% 29.53%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What is the power class of this bifacial photovoltaic module?
A1:
The power output of this bifacial solar panel is between 605W and 625W.
Q2: What cell specifications does this bifacial module adopt?
A2:
This module uses 210-182mm monocrystalline silicon cells as its core component.
Q3: What is the difference between this bifacial panel and traditional monofacial modules?
A3:
This bifacial panel can absorb sunlight from both front and rear sides, effectively improving overall power generation.
Q4: Does this module support dual-sided power generation in actual application?
A4:
Yes, its bifacial design enables it to capture reflected light and improve energy yield in various installation environments.
Q5: Is this module suitable for ground-mounted PV power stations with high albedo?
A5:
It is highly suitable for ground-mounted systems, as rear-side reflection can significantly boost its power generation performance.
Q6: What are the structural advantages of the mixed-size cell design in this module?
A6:
The 210-182mm mixed cell design balances high power output, mechanical stability and installation compatibility.
