470W-490W Bifacial Solar Panel 182-182mm N-Type Mono Half-Cut PV Module

470W-490W Bifacial Solar Panel 182-182mm N-Type Mono Half-Cut PV Module

470W-490W Bifacial Solar Panel 182-182mm N-Type Mono Half-Cut PV Module

Eliminate LID, Maximize Returns – This 470W-490W N-Type Bifacial Half-Cut Module with Uniform 182mm Cells Offers Ultra-Low Degradation, Excellent Bifacial Gain, and Long-Term Reliability for Utility and C&I Solar Projects

  • Item No :

    FG490W-M10N

  • Power :

    470W-490W

  • Dimension :

    1910x1134x30 mm

  • Min Order :

    36 PCS

  • Efficiency(%) :

    22.85%

  • Weight :

    26 kg

  • Cells Number :

    120
Inquiry Now

120 Cells 470W 475W 480W 485W 490W 182-91mm Solar Cell Mono N-Type BIFACIAL Half Cut Solar Panels

470W 475W 480W 485W 490W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 120 monocrystalline half-cut N-Type cells (182x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Customizable with a premium all-black design that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The 470W-490W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

BESS Solar Systems
Floating Solar PV Systems
Hybrid Solar Projects
Floating Solar PV Systems

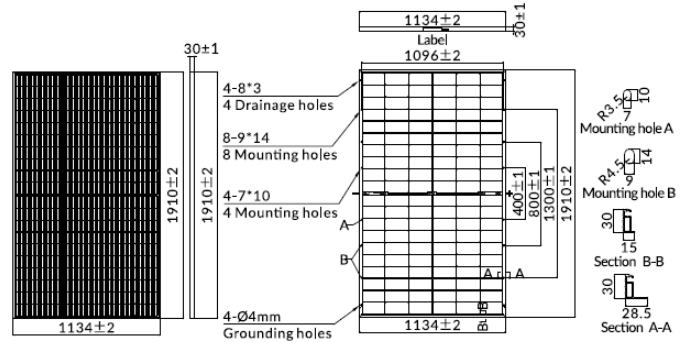

MECHANICAL DATA

Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 120 (6x20)
Output Cables 4.0mm², 250mm (+) / 350mm (-), length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa
Dimensions 1910 x 1134 x 30 mm
Weight 26 kg

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER MSD470M MSD475M MSD480M MSD485M MSD490M
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 470W 475W 480W 485W 490W
Open Circuit Voltage (Voc) 41.50V 41.80V 42.10V 42.40V 42.70V
Short Circuit Current (Isc) 14.05A 14.12A 14.19A 14.26A 14.33A
Voltage at Maximum power (Vmpp) 35.15V 35.38V 35.61V 35.84V 36.06V
Current Maximum Power (Impp) 13.37A 13.42A 13.48A 13.53A 13.58A
MODULE EFFICIENCY (%) 21.70% 21.93% 22.16% 22.39% 22.85%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER MSD470M MSD475M MSD480M MSD485M MSD490M
5% Maximum power (Pmax) 493W 498W 504W 509W 514W
Module Efficiency STC (%) 22.78% 23.02% 23.26% 23.50% 23.99%
15% Maximum power (Pmax) 540W 546W 552W 557W 563W
Module Efficiency STC (%) 24.95% 25.21% 25.48% 25.74% 26.27%
25% Maximum Power (Pmax) 587W 593W 600W 606W 612W
Module Efficiency STC (%) 27.12% 27.41% 27.70% 27.98%

28.56%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing. (36 pcs/pallet, 864 pcs/40'HQ)

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What is your warranty policy?
A1:
12 years product quality warranty, 25 years linear power output warranty.
Q2: What wind and snow load can it withstand?
A2:
High mechanical strength, support strong wind load and heavy snow load, stable for long-term outdoor operation.
Q3: What is the working temperature range?
A3:
Working temperature: -40℃ ~ +85℃, excellent temperature resistance for tropical, desert and cold regions.
Q4: What certifications does the module have?
A4:
assed CE, TUV, IEC61215, IEC61730 certifications, compliant with global market import standards.
Q5: Is this module suitable for ground-mounted PV power stations with high albedo?
A5:
It is highly suitable for ground-mounted systems, as rear-side reflection can significantly boost its power generation performance.
Q6: Where can this solar panel be installed?
A6:
Ideal for commercial rooftops, industrial plants, utility solar farms, solar carports, agrivoltaics, off-grid and hybrid energy projects.
