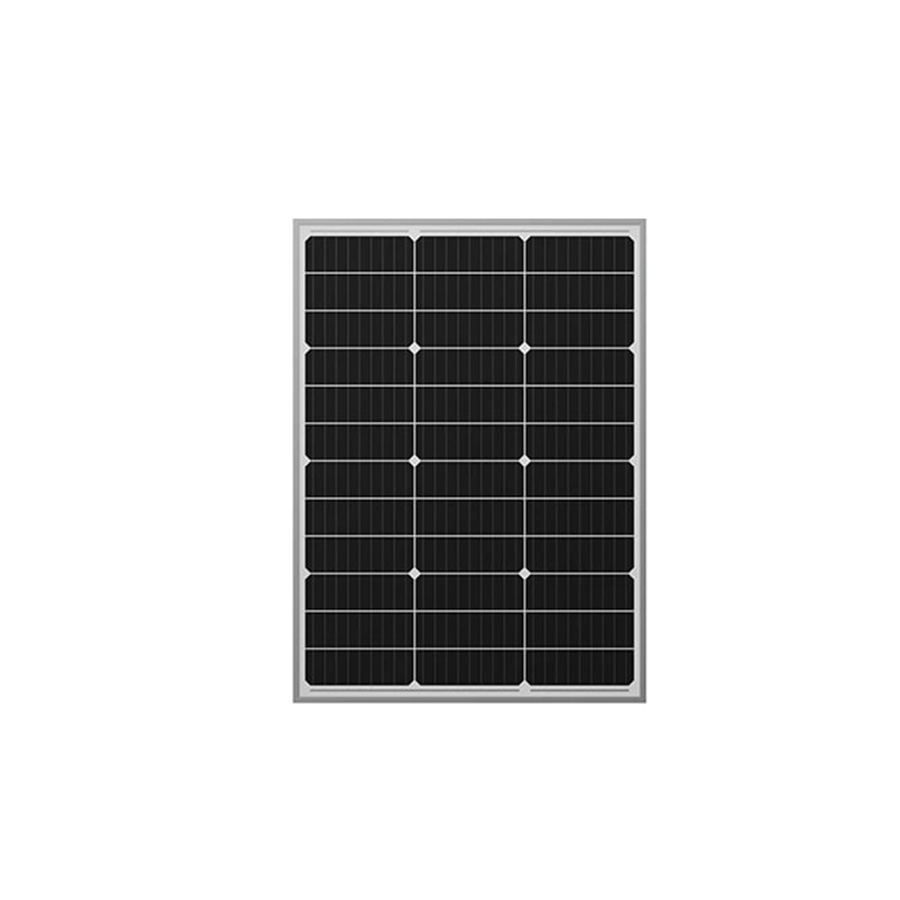

Cost-Effective 70W Mono Solar Panels with Customized Service, Widely Used in Off-Grid Installations, Street Lights and Small PV Projects
Item No :
FG70WPower :
70WDimension :
740×540×25mmMin Order :
100PCSEfficiency(%) :
18.77%Weight :
4.2kgCells Number :
3670W 75W 166mm Mono Solar Panels
Equipped with 36 (3x12) Monocrystalline Cells measuring 166x55.33 mm, delivering reliable energy yield and up to 18.77% efficiency.
Measuring just 740*540*25mm and weighing only 4.2kg, it is highly adaptable for small-scale applications, RVs, and marine use.

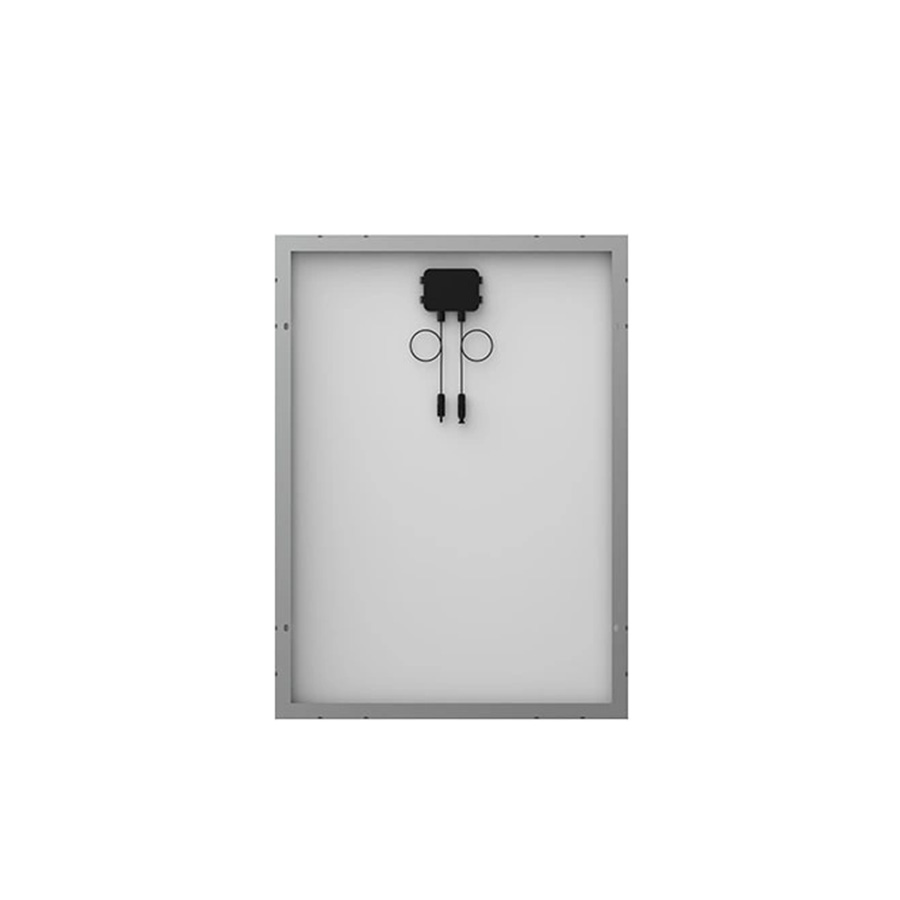

Features 3.2mm high transmission low iron tempered glass. The junction box is IP65/IP67 approved for maximum safety and weather resistance.
Front Glass : 3.2mm high transmission low iron, tempered glass
Frame: Anodized Aluminium Alloy
Output Cables: 2.5mm² cable, 50cm length
Connectors: MC4 Compatible | Junction Box: IP65/IP67
The 70W-75W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:
STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

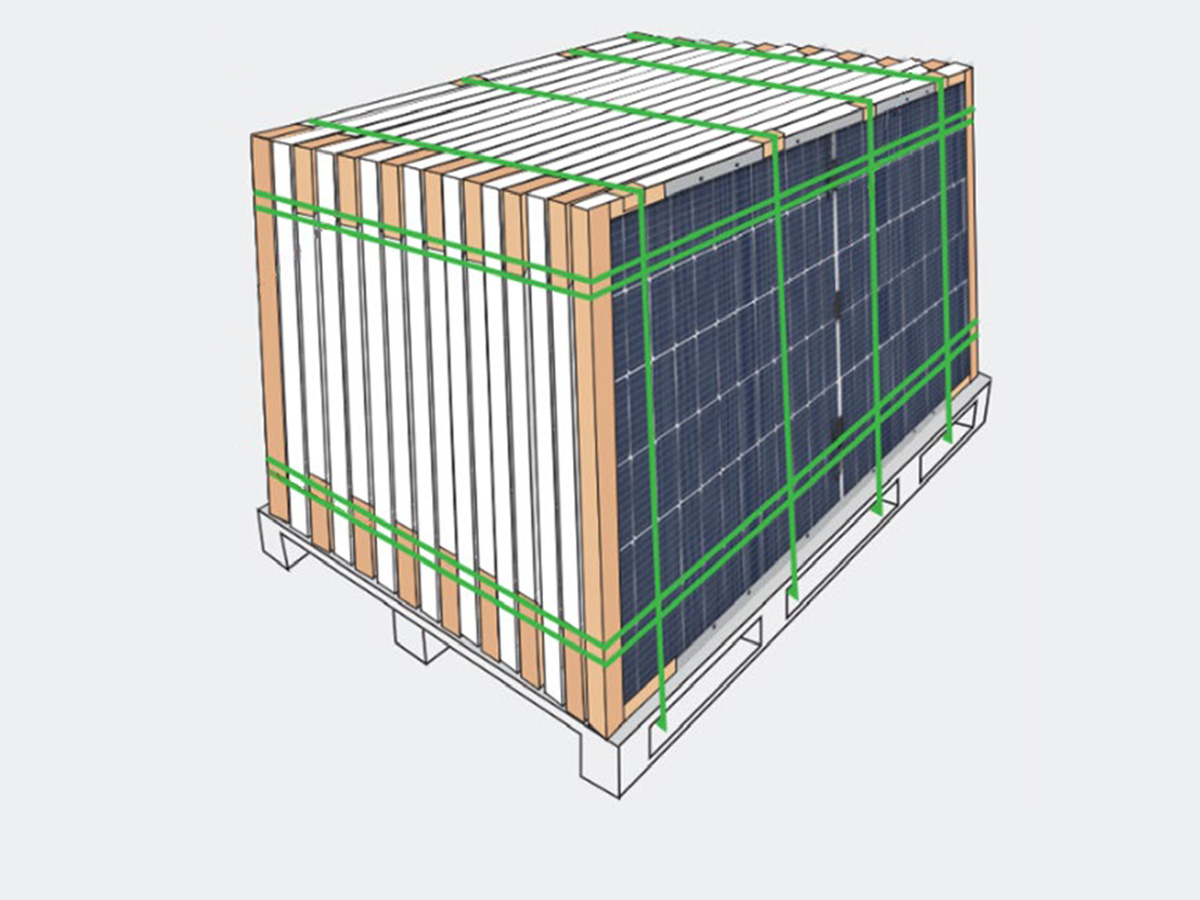

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.
Provide customized industrial packaging solutions according to different scenario requirements.
All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.
