Solar Panel

Solar Panel

Home Solar Panel

620W-640W Solar Panel 182-182mm Mono PV Module

620W-640W Solar Panel 182-182mm Mono PV Module

620W-640W Solar Panel 182-182mm Mono PV Module

Ultra-High Power Output 182/182mm Mono PV Module with Superior Conversion Efficiency

  • Item No :

    FG620W-M10R

  • Power :

    620W-640W

  • Dimension :

    2465×1134×33 mm

  • Min Order :

    34PCS

  • Efficiency(%) :

    22.90%

  • Weight :

    34.8%

  • Cells Number :

    144
Inquiry Now

M10R 620W 625W 630W 635W 640W 144-Cell Mono LECO N-Type BIFACIAL DG Solar Panels

620W 625W 630W  635W 640W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 144 monocrystalline N-Type cells (6x24), these high-efficiency bifacial modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes. Enjoy peace of mind with a 15-year standard product warranty (extendable to 20 years) and an industry-leading 30-year linear performance warranty.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0mm coated semi-tempered glass
Frame: Anodized aluminium alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-)
Connectors: Mc4 compatible

IDEAL APPLICATIONS

The 620W-640W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Large-Scale Solar Arrays
Commercial Systems
Manufacturing Facilities
Parking Structures

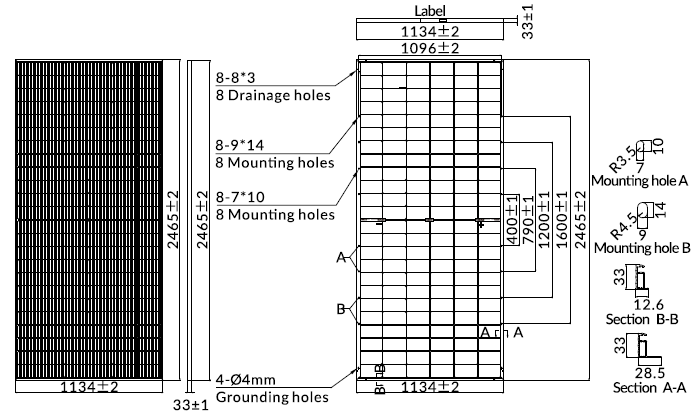

MECHANICAL DATA

Dimensions 2465 × 1134 × 33 mm
Weight 34.8 kg
Cell Type N-type Mono
Junction Box Ip68 rated (3 by pass diodes)
Number of Cells 144 (6x24)
Output Cables 4.0mm², 250mm(+)/350mm(-)
Front/Back Glass 2.0mm coated semi-tempered glass
Connectors Mc4 compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test Front 5400Pa / Rear 2400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-620ND FGET-625ND FGET-630ND FGET-635ND FGET-640ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 620W 625W 630W 635W 640W
Open Circuit Voltage (Voc) 51.65V 51.84V 52.03V 52.22V 52.41V
Short Circuit Current (Isc) 15.12A 15.18A 15.24A 15.30A 15.36A
Voltage at Maximum power (Vmpp) 43.51V 43.68V 43.84V 44.01V 44.17V
Current Maximum Power (Impp) 14.25A 14.31A 14.37A 14.43A 14.49A
MODULE EFFICIENCY (%) 22.18% 22.36% 22.54% 22.72% 22.90%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-620ND FGET-625ND FGET-630ND FGET-635ND FGET-640ND
5%  Maximum power (Pmax) 651W 656W 662W 667W 672W
Module Efficiency STC (%) 23.29% 23.48% 23.66% 23.85% 24.04%
15% Maximum power (Pmax) 713W 719W 725W 730W 736W
Module Efficiency STC (%) 25.51% 25.71% 25.92% 26.12%  26.33%
25% Maximum Power (Pmax) 775W 781W 788W 794W 800W
Module Efficiency STC (%) 27.73% 27.95% 28.17% 28.40% 28.62%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets. Each pallet contains 34 modules, and a standard 40' HQ container safely accommodates 544 modules (16 pallets).

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

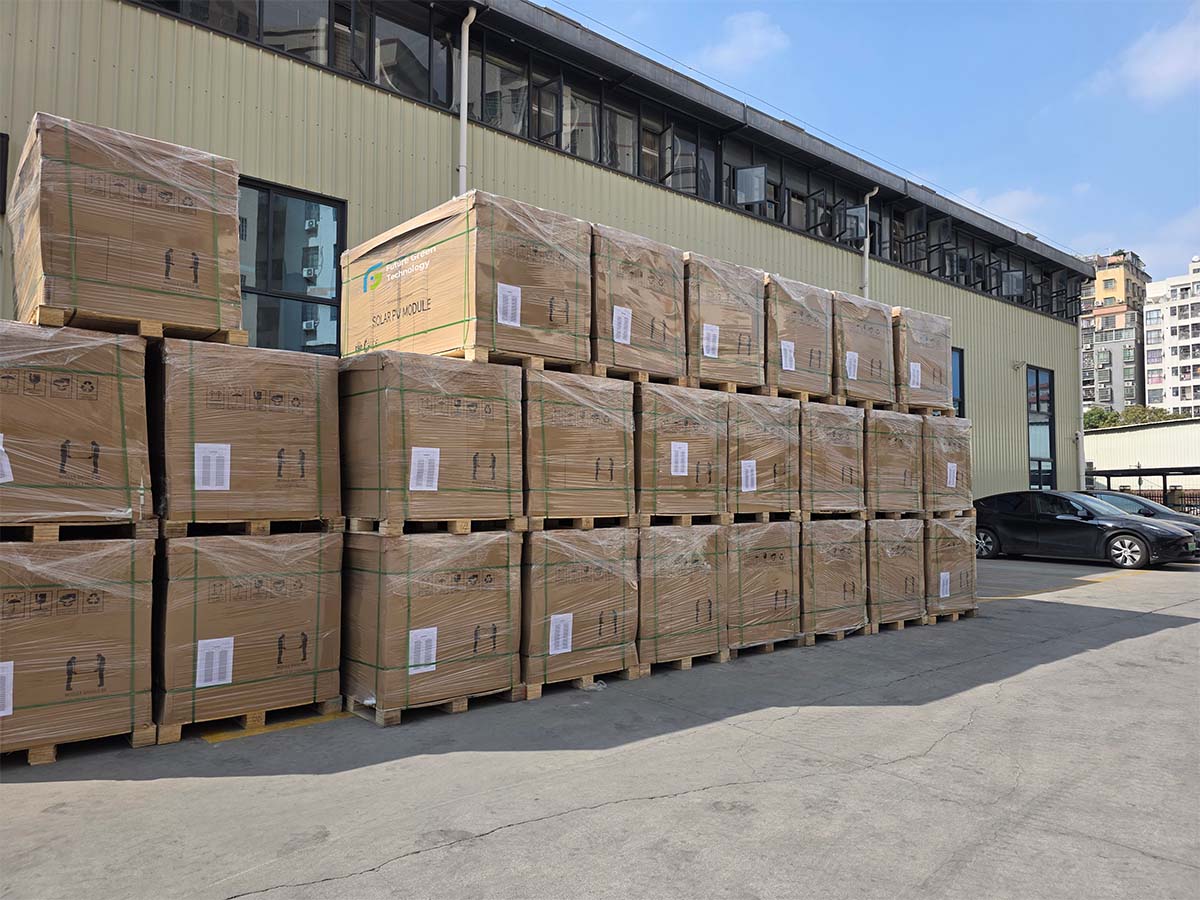

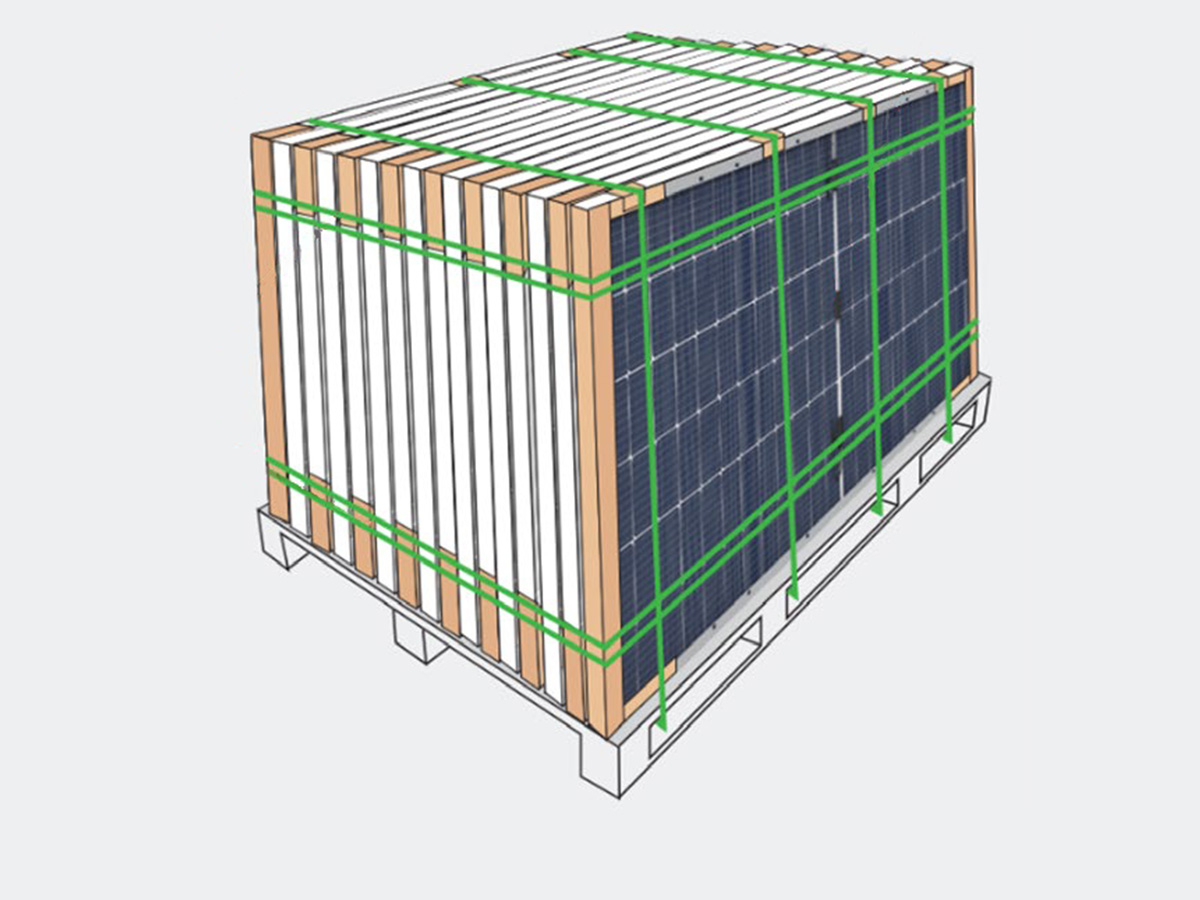

Packaging Image 1 Packaging Image 2

FAQ

Q1: What is the maximum power output of this photovoltaic module?
A1:
The module power ranges from 620W to 640W, with stable power generation performance.
Q2: Can this module be used in both commercial and residential PV systems?
A2:
Yes, it is suitable for industrial, commercial and large residential photovoltaic projects.
Q3: Does this module feature good compatibility with mainstream PV brackets and inverters?
A3:
It has standard structure and electrical parameters, compatible with most mainstream support and inverter systems.
Q4: What kind of weather conditions is this solar panel adapted to?
A4:
It is designed to withstand high wind, snow pressure and harsh outdoor environments with strong durability.
Q5: What is operating temperature range for solar panel?
A5:
-40°C to 85°C (-40°F to 185°F). Efficiency slightly drops in extreme heat; voltage may rise in cold conditions.
Q6: Does power output vary much under different light conditions?
A6:
Output peaks in direct sunlight; drops significantly on cloudy days, winter, or with shading. High-quality panels perform better in low light.
