Solar Panel

Solar Panel

Home Solar Panel

490W-510W Solar Panel 210-182mm Mono PV Module

490W-510W Solar Panel 210-182mm Mono PV Module

490W-510W Solar Panel 210-182mm Mono PV Module

High-Power Monocrystalline Module Built with a Hybrid Configuration of 210mm and 182mm Silicon Wafers, Offering 490W to 510W Output, High Module Efficiency, Excellent Low-Light Performance, and Reliable Durability for Demanding Solar Projects

  • Item No :

    FG490W-G12R

  • Power :

    490W-510W

  • Dimension :

    1961×1134×30 mm

  • Min Order :

    36 PCS

  • Efficiency(%) :

    22.93%

  • Weight :

    23.5 kg

  • Cells Number :

    108
Inquiry Now

G12R 490W 495W 500W 505W 510W 210-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

490W 495W 500W 505W 510W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 108 monocrystalline half-cut N-Type cells (210x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The G12R 490W-510W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Solar Microgrid Projects
Public Facility Solar
Government Building PV
Library Rooftop Solar

MECHANICAL DATA

Dimensions 1961×1134×30 mm
Weight 23.5 kg
Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 108 (6x18)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

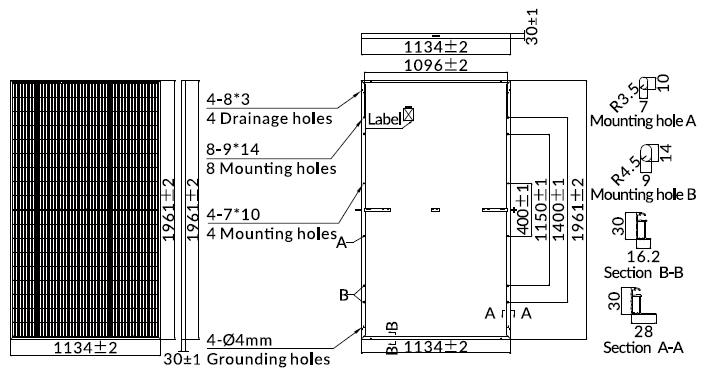

Engineering Drawing

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-490N FGET-495N FGET-500N FGET-505N FGET-510N
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 490W 495W 500W 505W 510W
Open Circuit Voltage (Voc) 39.45V 39.68V 39.90V 40.12V 40.34V
Short Circuit Current (Isc) 15.76A 15.82A 15.88A 15.94A 16.00A
Voltage at Maximum power (Vmpp) 33.02V 33.22V 33.42V 33.62V 33.82V
Current Maximum Power (Impp) 14.84A 14.90A 14.96A 15.02A 15.08A
MODULE EFFICIENCY (%) 22.03% 22.26% 22.48% 22.71% 22.93%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-490N FGET-495N FGET-500N FGET-505N FGET-510N
5% Maximum power (Pmax) 515W 520W 525W 530W 536W
Module Efficiency STC (%) 23.13% 23.37% 23.60% 23.85% 24.08%
15% Maximum power (Pmax) 564W 569W 575W 581W 587W
Module Efficiency STC (%) 25.33% 25.60% 25.85% 26.12% 26.37%
25% Maximum Power (Pmax) 613W 619W 625W 631W 638W
Module Efficiency STC (%) 27.54% 27.83% 28.10% 28.39% 28.66%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets. Each pallet contains 36 modules, and a standard 40' HQ container safely accommodates 864 modules (24 pallets).

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: How much extra power can the bifacial side provide?
A1:
Rear-side gain reaches 5%–25%. At 25% gain, 510W panel outputs up to 638W with efficiency up to 28.66%, greatly improving project ROI.
Q2: What applications is this panel suitable for?
A2:
Ideal for commercial/industrial rooftops, utility-scale farms, solar carports, industrial facilities. Works for on-grid and off-grid systems with high return on investment.
Q3: What are the key specs of this 490W–510W solar panel?
A3:
Power 490W–510W, max efficiency 22.93%, size 1961×1134×30mm, weight 23.5kg. Uses 108 half-cut N-type cells (210/182mm), bifacial dual-glass, IP68 junction box, IEC certified.
Q4: What’s the difference between dual-glass and traditional modules?
A4:
2.0mm coated tempered double glass improves waterproofing, anti-aging, and fire resistance. It stronger withstands wind, snow, sand, and extends service life compared to single-glass modules.
Q5: How does the bifacial gain improve actual power generation?
A5:
Rear side captures reflected light, offering 5%–25% extra power. At 25% gain, 510W panel reaches 638W output, significantly increasing annual yield and project profitability.
Q6: Can cable and connector be customized for projects?
A6:
Yes. Standard 4.0mm² cables with 250mm positive and 350mm negative. MC4 compatible connectors are used. Length and interface can be customized to match different installation needs.
