Solar Panel

Solar Panel

Home Solar Panel

570W-590W Bifacial Solar Panel 182-182mm Mono PV Module

570W-590W Bifacial Solar Panel 182-182mm Mono PV Module

570W-590W Bifacial Solar Panel 182-182mm Mono PV Module

570W–590W High Power Bifacial Solar Panel, 182mm Monocrystalline Half-Cell Design with Double Glass, Delivers Extra Backside Power Gain for Commercial & Large-Scale PV Projects

  • Item No :

    FG580W-M10N

  • Power :

    570W-590W

  • Dimension :

    2278×1134×30 mm

  • Min Order :

    36 PCS

  • Efficiency(%) :

    22.84%

  • Weight :

    28.5 kg

  • Cells Number :

    144
Inquiry Now
Download

M10N 570W 575W 580W 585W 590W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

570W 575W 580W 585W 590W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 144 monocrystalline half-cut N-Type cells (182x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The M10N 570W-590W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Ground-Mounted Solar Farms
Commercial Property Rooftops
Warehouse & Distribution Centers
Remote Communication Base Stations

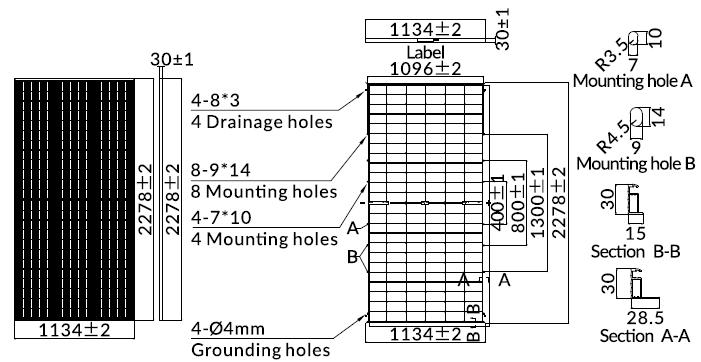

MECHANICAL DATA

Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 144 (6x24)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGT-570ND FGT-575ND FGT-580ND FGT-585ND FGT-590ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 570W 575W 580W 585W 590W
Open Circuit Voltage (Voc) 51.41V 51.55V 51.68V 51.81V 51.94V
Short Circuit Current (Isc) 14.15A 14.22A 14.29A 14.36A 14.43A
Voltage at Maximum power (Vmpp) 42.41V 42.56V 42.71V 42.86V 43.00V
Current Maximum Power (Impp) 13.44A 13.51A 13.58A 13.65A 13.72A
MODULE EFFICIENCY (%) 22.07% 22.26% 22.45% 22.65% 22.84%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGT-570ND FGT-575ND FGT-580ND FGT-585ND FGT-590ND
5% Maximum power (Pmax) 599W 604W 609W 614W 620W
Module Efficiency STC (%) 23.17% 23.37% 23.57% 23.78% 23.98%
15% Maximum power (Pmax) 656W 661W 667W 673W 679W
Module Efficiency STC (%) 25.37% 25.60% 25.82% 26.04% 26.27%
25% Maximum Power (Pmax) 713W 719W 725W 731W 738W
Module Efficiency STC (%) 27.58% 27.82% 28.07% 28.31% 28.55%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What kind of installation scenarios can maximize the bifacial gain of this panel?
A1:
Installations with high reflectivity surfaces such as gravel, sand or white roof can achieve higher bifacial power gain.
Q2: Does this module have good performance in low irradiance environments?
A2:
With high-quality monocrystalline cells, it maintains stable power generation even under weak light conditions.
Q3: Is this module suitable for open-field solar power station projects?
A3:
Yes, it is well designed for large ground-mounted PV plants and can fully play its bifacial advantages.
Q4: How does the bifacial design improve the energy generation of this module?
A4:
It can utilize both direct sunlight and reflected light from the ground to increase total power output.
Q5: What is the design life of this 182mm cell bifacial solar panel?
A5:
The module is designed for long-term outdoor use with a typical service life of more than 25 years.
Q6: Does this module have good anti-aging and anti-ultraviolet performance?
A6:
It uses durable packaging materials, providing strong UV resistance and long service life.
Hot Tags :

580W Bifacial Mono Solar Panel

182mm Cell Bifacial PV Module

Utility Scale 570W PV Panel

High Yield 590W Solar Module

Dual Glass Monocrystalline Solar Panel

M10 Wafer Bifacial Solar Module
