Solar Panel

Solar Panel

Home Solar Panel

700W-720W Bifacial Solar Panel 210-210mm Mono PV Module

700W-720W Bifacial Solar Panel 210-210mm Mono PV Module

700W-720W Bifacial Solar Panel 210-210mm Mono PV Module

Advanced Bifacial Technology Combined with 210mm Large-Size Mono Wafers, Delivering 700-720W Stable Power and Superior Rear-Side Generation Performance

  • Item No :

    FG720W-G12N

  • Power :

    700W-720W

  • Dimension :

    2382×1303×33 mm

  • Min Order :

    33 PCS

  • Efficiency(%) :

    22.86%

  • Weight :

    38.5 kg

  • Cells Number :

    132
Inquiry Now

G12N 700W 705W 710W 715W 720W 210-210mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

700W 705W 710W 715W 720W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 132 monocrystalline half-cut N-Type cells (210x210mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The G12N 700W-720W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Telecom Tower Solar
Construction Site PV
Remote Site Power
Apartment Building Solar

MECHANICAL DATA

Dimensions 2382×1303×33 mm
Weight 38.5 kg
Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 132 (6x22)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

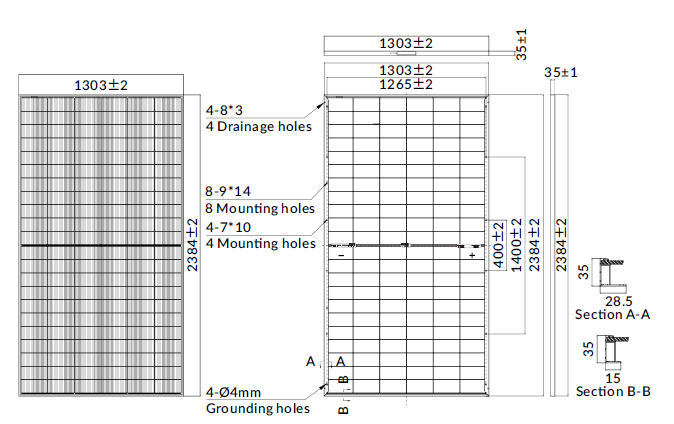

Engineering Drawing

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-700ND FGET-705ND FGET-710ND FGET-715ND FGET-720ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 700W 705W 710W 715W 720W
Open Circuit Voltage (Voc) 47.95V 48.15V 48.34V 48.54V 48.73V
Short Circuit Current (Isc) 18.29A 18.34A 18.39A 18.44A 18.49A
Voltage at Maximum power (Vmpp) 39.84V 40.03V 40.23V 40.42V 40.62V
Current Maximum Power (Impp) 17.32A 17.36A 17.40A 17.44A 17.48A
MODULE EFFICIENCY (%) 22.21% 22.37% 22.53% 22.70% 22.86%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-700ND FGET-705ND FGET-710ND FGET-715ND FGET-720ND
5% Maximum power (Pmax) 725W 730W 735W 740W 746W
Module Efficiency STC (%) 23.32% 23.49% 23.66% 23.83% 24.00%
15% Maximum power (Pmax) 794W 799W 805W 811W 817W
Module Efficiency STC (%) 25.54% 25.73% 25.91% 26.10% 26.28%
25% Maximum Power (Pmax) 863W 869W 875W 881W 888W
Module Efficiency STC (%) 27.77% 27.97% 28.17% 28.37% 28.57%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets. Each pallet contains 33 modules, and a standard 40' HQ container safely accommodates 660 modules (20 pallets).

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

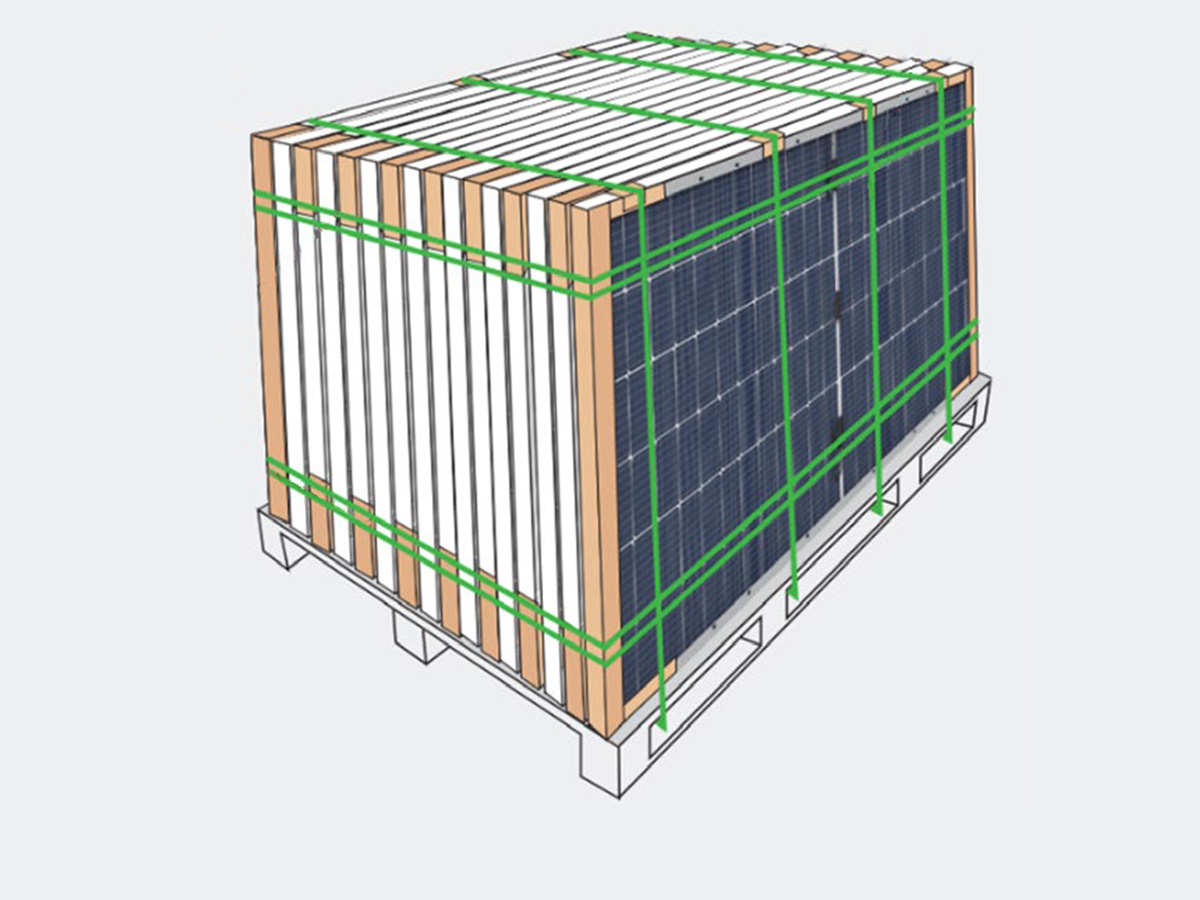

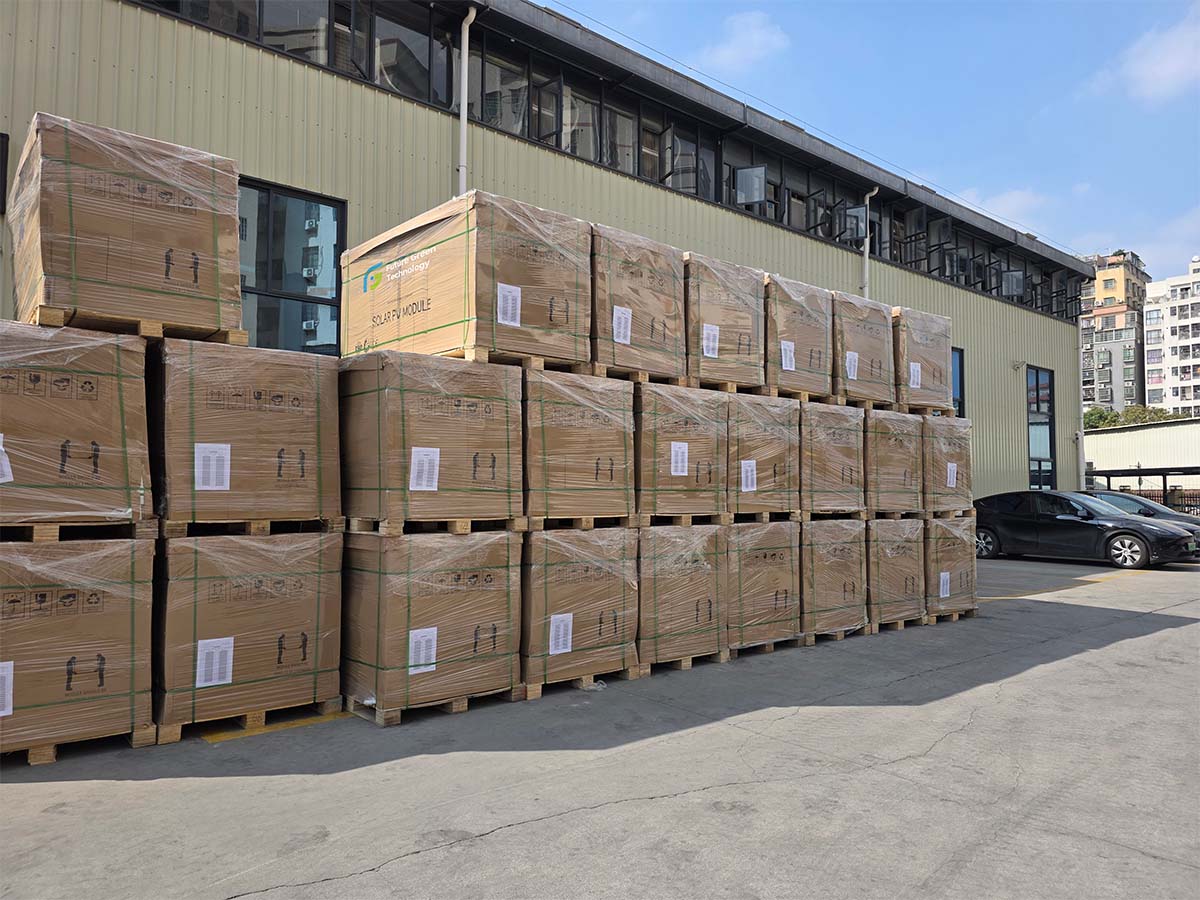

Packaging Image 1 Packaging Image 2

FAQ

Q1: How do I choose the right solar panel wattage?
A1:
Select wattage based on your daily power needs, installation space, budget and system type. High-wattage panels maximize output for small rooftops; 450W panels work for compact setups.
Q2: What are Voc, Vmp, Isc?
A2:
Voc: max voltage; Vmp: optimal working voltage; Isc: max current. Used for safe system matching, wiring, and component selection.
Q3: What is conversion efficiency?
A3:
It's the percentage of sunlight converted to electricity. Higher = more power in small spaces. Balance efficiency, space and budget for best value.
Q4: What are the standard dimensions & weight for this solar panel?
A4:
For this G12N 700W-720W series, the exact dimensions are 2382 × 1303 × 33 mm, and each panel weighs 38.5 kg.
Q5: What is operating temperature range for solar panel?
A5:
-40°C to 85°C (-40°F to 185°F). Efficiency slightly drops in extreme heat; voltage may rise in cold conditions.
Q6: Does power output vary much under different light conditions?
A6:
Output peaks in direct sunlight; drops significantly on cloudy days, winter, or with shading. High-quality panels perform better in low light.
Hot Tags :

renewable energy solutions

clean energy products

photovoltaic system

BIPV solar panel

industrial solar panel

commercial solar panel
