Compact Design 80W 90W Mono Solar Panels, Customized Specifications Supported, Ideal for Small Solar Power Systems and Portable Energy Solutions
Item No :
FG-85WPower :
80W-90WDimension :
800×580×30mmMin Order :
100PCSEfficiency(%) :
19.4%Weight :
4.87kgCells Number :

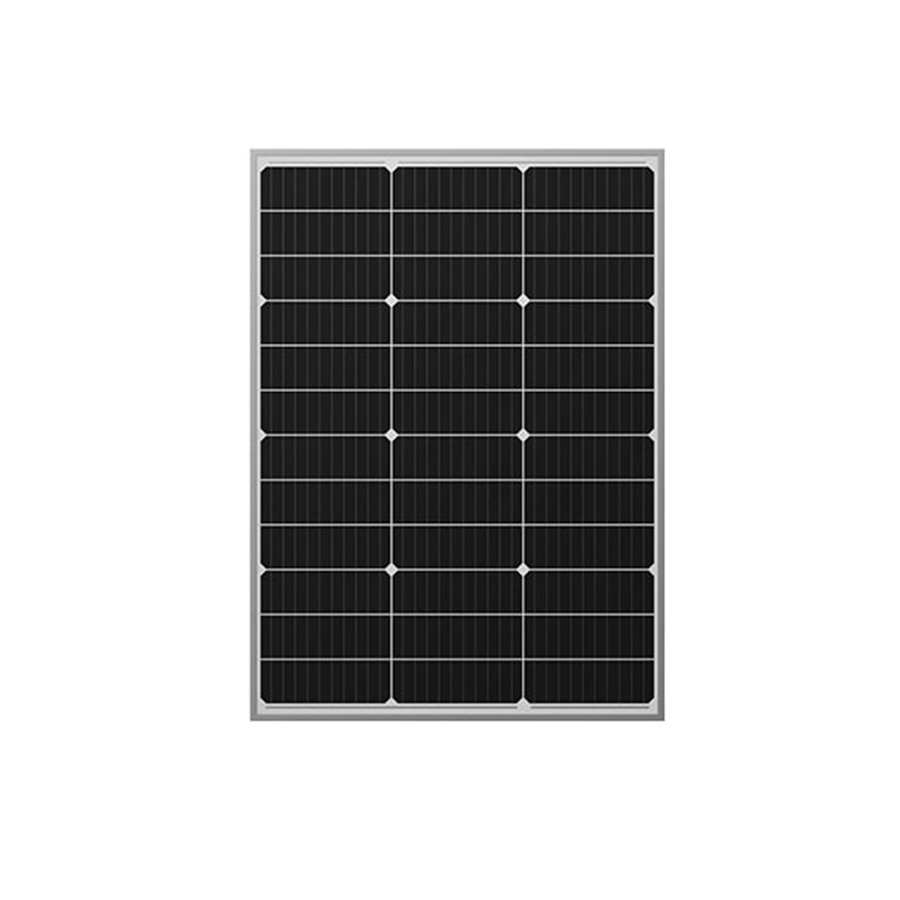

3680W 90W 182mm Mono Solar Panels
Equipped with 36 (3x12) advanced 182x60.66mm monocrystalline cells, delivering reliable power and conversion efficiency up to 19.4%.
Measuring 800*580*30mm and weighing just 4.87kg, it is ideal for small-scale applications, RVs, and marine use.
Constructed with 3.2mm low-iron tempered glass and an anodized aluminium frame, certified to withstand 2400Pa wind load and 5400Pa snow load.
Front Glass: 3.2mm high transmission low iron tempered glass
Frame: Anodized Aluminium Alloy

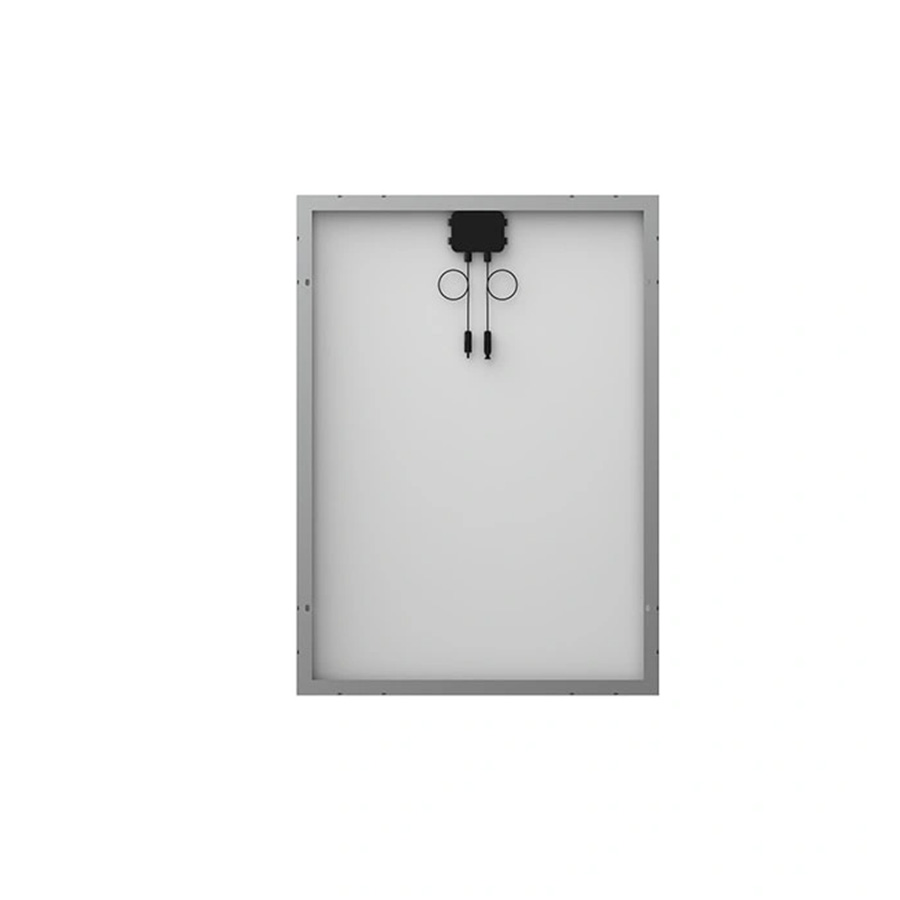

Output Cables: 2.5mm² cable, 50cm length
Connectors: MC4 Compatible | IP65/IP67 Junction Box
The FG80M and FG90M models are highly versatile, compact, and perfect for various off-grid and small-scale solar projects:
* STC: Irradiance 1000W/m², Cell Temperature 25°C, AM1.5G
| Maximum System Voltage | 1000V |
| Maximum Series Fuse Rating | 10A |
| Power Tolerance | 0 ~ +3% |
| Pmax Temperature Coefficient | -0.350%/°C |
| Voc Temperature Coefficient | -0.270%/°C |
| Isc Temperature Coefficient | +0.048%/°C |
| NOCT Nominal Operating Cell Temperature | 45±2°C |
| Operating and Storage Temperature | -40 ~ +85°C |
Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.
Provide customized industrial packaging solutions according to different scenario requirements.
All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.
