Solar Panel

Solar Panel

Home Solar Panel

420W-440W Bifacial Solar Panel 182-182mm Mono PV Module

420W-440W Bifacial Solar Panel 182-182mm Mono PV Module

420W-440W Bifacial Solar Panel 182-182mm Mono PV Module

182mm monocrystalline bifacial PV module in 400–420W power range, high light utilization efficiency, strong weather resistance, ideal for home solar systems & off-grid energy storage solutions

  • Item No :

    FG420W-M10

  • Power :

    420W-440W

  • Dimension :

    1722×1134×30 mm

  • Min Order :

    36 PCS

  • Efficiency(%) :

    22.53%

  • Weight :

    20.8 kg

  • Cells Number :

    108
Inquiry Now

M10 420W 425W 430W 435W 440W 182-182mm Solar Cell Mono P-Type BIFACIAL Half Cut Solar Panels

420W 425W 430W 435W 440W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 108 monocrystalline half-cut P-Type cells (182x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The M10 420W-440W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Hotel Rooftop Systems
University Campus PV
Factory Roof Solar
Warehouse Rooftop PV

MECHANICAL DATA

Cell Type Monocrystalline P-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 108 (6x18)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

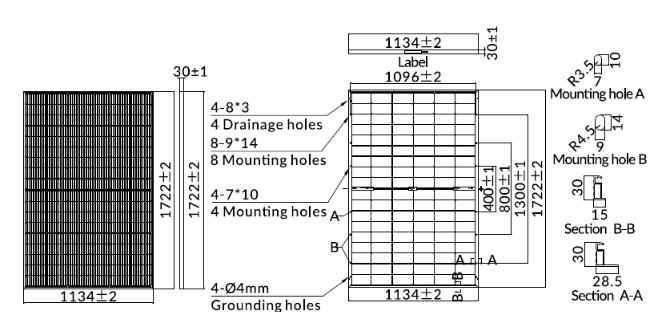

Mechanical Blueprint

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-420ND FGET-425ND FGET-430ND FGET-435ND FGET-440ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 420W 425W 430W 435W 440W
Open Circuit Voltage (Voc) 38.49V 38.73V 38.96V 39.19V 39.42V
Short Circuit Current (Isc) 13.99A 14.06A 14.13A 14.20A 14.27A
Voltage at Maximum power (Vmpp) 31.63V 31.84V 32.04V 32.25V 32.45V
Current Maximum Power (Impp) 13.28A 13.35A 13.42A 13.49A 13.56A
MODULE EFFICIENCY (%) 21.51% 21.76% 22.02% 22.28% 22.53%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

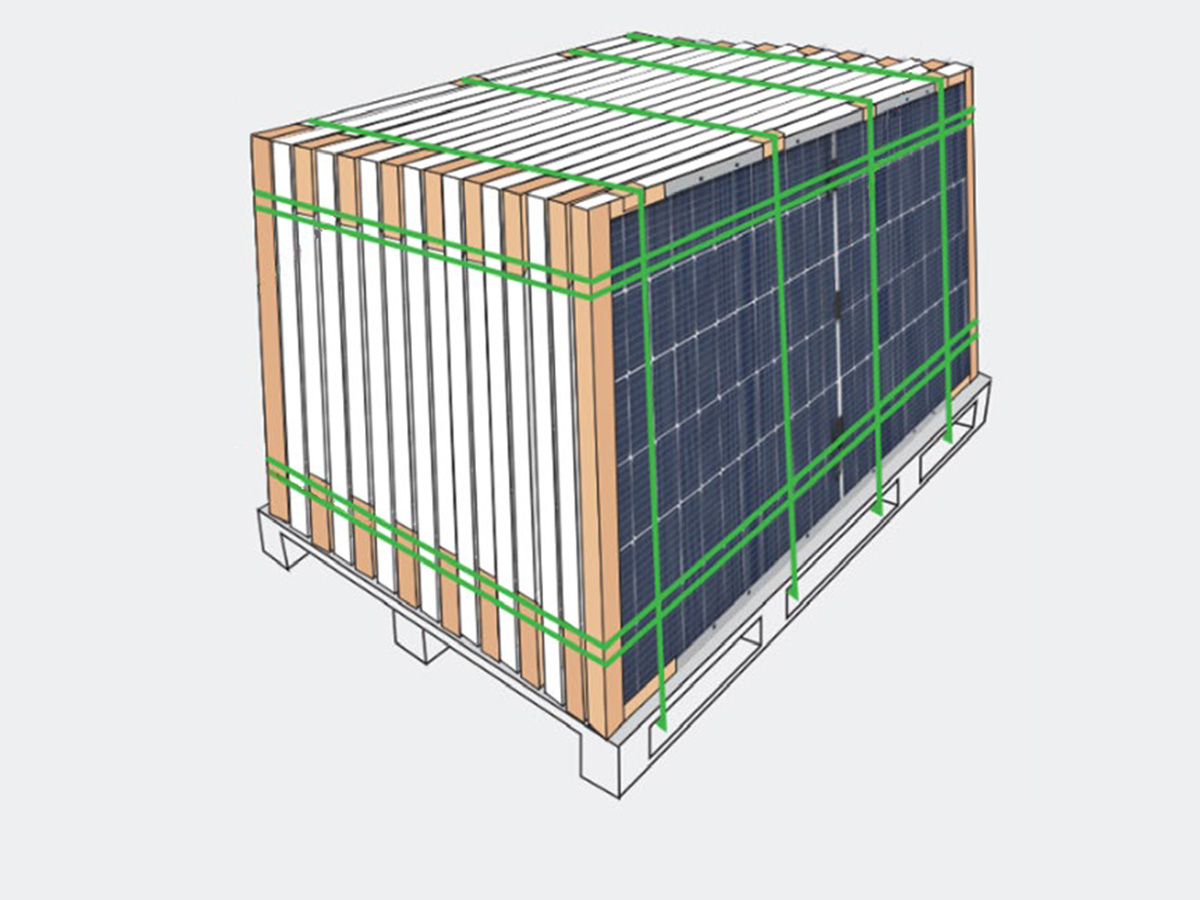

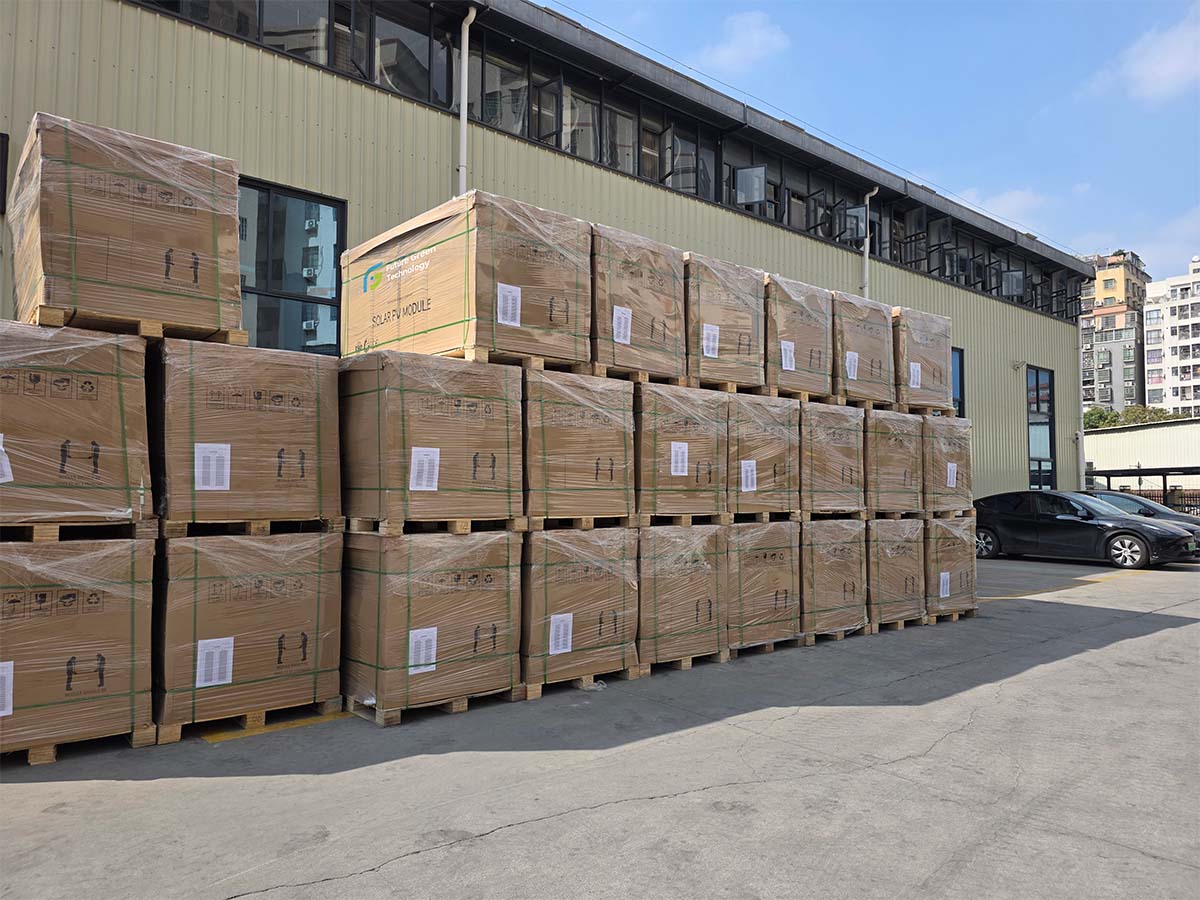

Packaging Image 1 Packaging Image 2

FAQ

Q1: How do I choose the right solar panel wattage?
A1:
Select wattage based on your daily power needs, installation space, budget and system type. High-wattage panels maximize output for small rooftops; 450W panels work for compact setups.
Q2: What cell size and technology does it use?
A2:
It uses high-efficiency 182mm monocrystalline cells, half-cut design, and multi-busbar (MBB) technology, with options for TOPCon or PERC.
Q3: What is the bifacial gain rate of this module?
A3:
Typical bifaciality reaches 70%~80%, allowing extra power generation from reflected light.
Q4: What certifications does this module have?
A4:
It complies with IEC 61215, IEC 61730, and CE standards, with optional TÜV certification.
Q5: What is its wind/snow load resistance?
A5:
Front side: up to 5400Pa (snow load); rear side: up to 2400Pa (wind load).
Q6: What are the structural advantages of the mixed-size cell design in this module?
A6:
The 210-182mm mixed cell design balances high power output, mechanical stability and installation compatibility.
