Solar Panel

Solar Panel

Home Solar Panel

435W-455W Bifacial Solar Panel 210-182mm Mono Solar Module

435W-455W Bifacial Solar Panel 210-182mm Mono Solar Module

435W-455W Bifacial Solar Panel 210-182mm Mono Solar Module

The Sweet Spot of Power and Value – A 435W-455W Bifacial Solar Panel Built with 210-182mm Monocrystalline Cells, Offering Ideal Wattage for Medium-to-Large Installations Where Reliability, Bifacial Gain, and Cost-Effectiveness Converge

  • Item No :

    FG440W-G12R

  • Power :

    435W-455W

  • Dimension :

    1762×1134×30 mm

  • Min Order :

    36 PCS

  • Efficiency(%) :

    22.77%

  • Weight :

    21.0 kg

  • Cells Number :

    96
Inquiry Now

G12R 435W 440W 445W 450W 455W 210-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

435W 440W 445W 450W 455W

CORE PERFORMANCE FEATURES

01

Outstanding Energy Yield

Equipped with 96 monocrystalline half-cut N-Type cells (210x91mm), these high-efficiency modules drastically reduce internal resistance loss and deliver superior overall power output for commercial solar installations.

02

Elegant All-Black Aesthetics

Designed with a premium dark appearance that seamlessly blends into residential rooftops and architectural designs, significantly reducing light reflection and visual pollution.

03

Robust & Certified Reliability

Features an IP68-rated junction box with 3 bypass diodes and comprehensive IEC 62790 certification, ensuring long-term safety and durability across diverse climates.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm Coated Tempered Glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The G12R 435W-455W bifacial series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Commercial Rooftops
Utility-Scale Solar Farms
Industrial Facilities
Solar Carports & Canopies

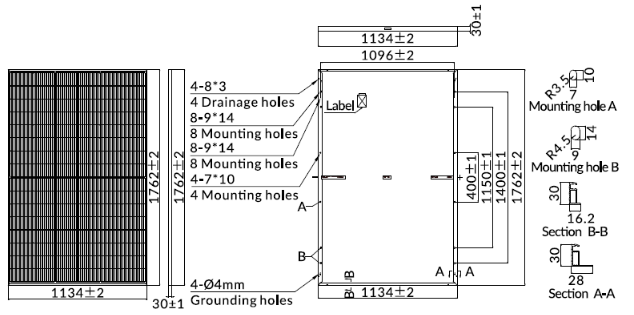

MECHANICAL DATA

Dimensions 1762×1134×30 mm
Weight 21.0 kg
Cell Type Monocrystalline N-Type
Junction Box IP68 rated (3 bypass diodes)
Number of Cells 96 (6x16)
Output Cables 4.0mm², length customizable
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized aluminium alloy
Mechanical Load Test 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGET-435N FGET-440N FGET-445N FGET-450N FGET-455N
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 435W 440W 445W 450W 455W
Open Circuit Voltage (Voc) 35.08V 35.27V 35.46V 35.66V 35.85V
Short Circuit Current (Isc) 15.76A 15.82A 15.88A 15.94A 16.00A
Voltage at Maximum power (Vmpp) 29.36V 29.53V 29.70V 29.88V 30.06V
Current Maximum Power (Impp) 14.84A 14.90A 14.96A 15.02A 15.08A
MODULE EFFICIENCY (%) 21.77% 22.02% 22.27% 22.52% 22.77%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGET-435N FGET-440N FGET-445N FGET-450N FGET-455N
5% Maximum power (Pmax) 457W 462W 467W 472W 477W
Module Efficiency STC (%) 22.86% 23.12% 23.38% 23.64% 23.90%
15% Maximum power (Pmax) 500W 506W 511W 517W 523W
Module Efficiency STC (%) 25.04% 25.32% 25.61% 25.89% 26.18%
25% Maximum Power (Pmax) 544W 550W 556W 562W 568W
Module Efficiency STC (%) 27.21% 27.52% 27.83% 28.15% 28.46%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets. Each pallet contains 36 modules, and a standard 40' HQ container safely accommodates 936 modules (26 pallets).

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

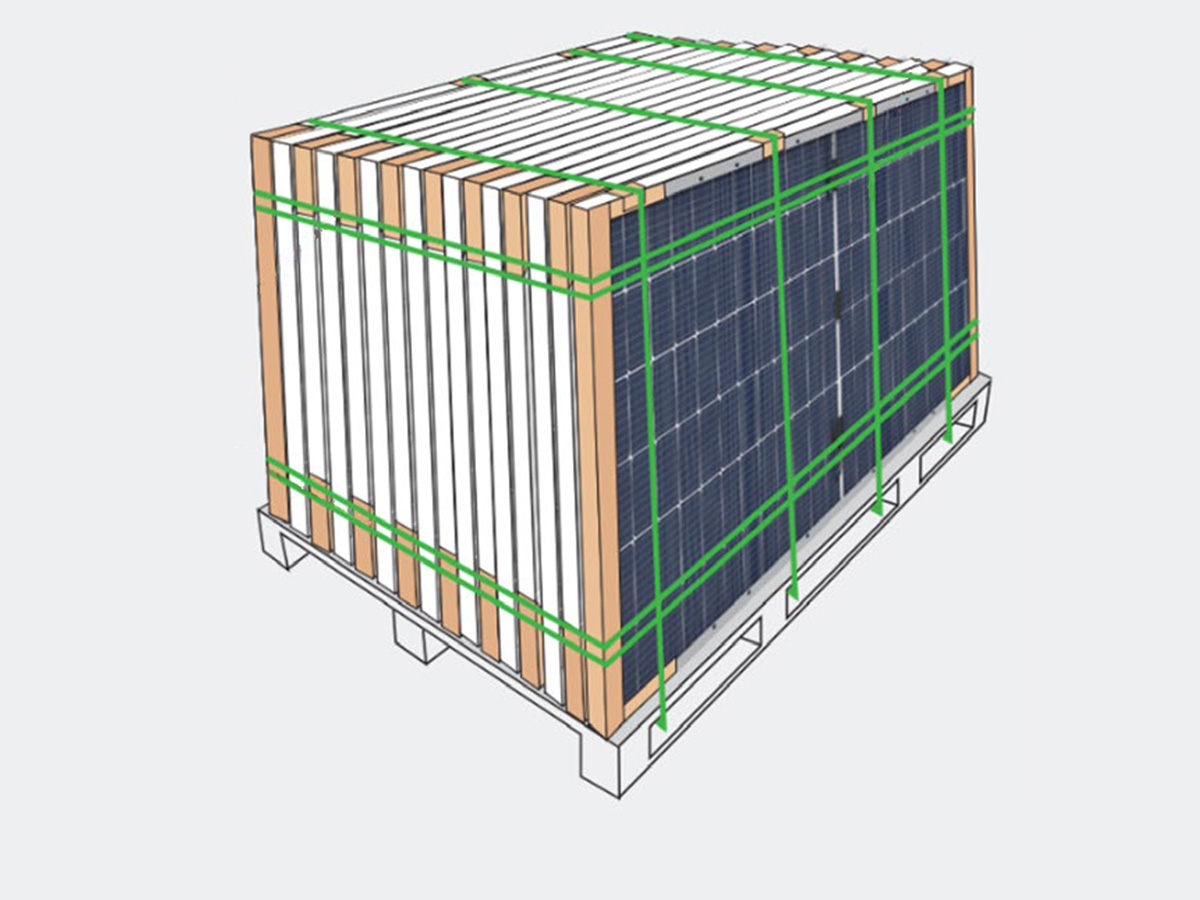

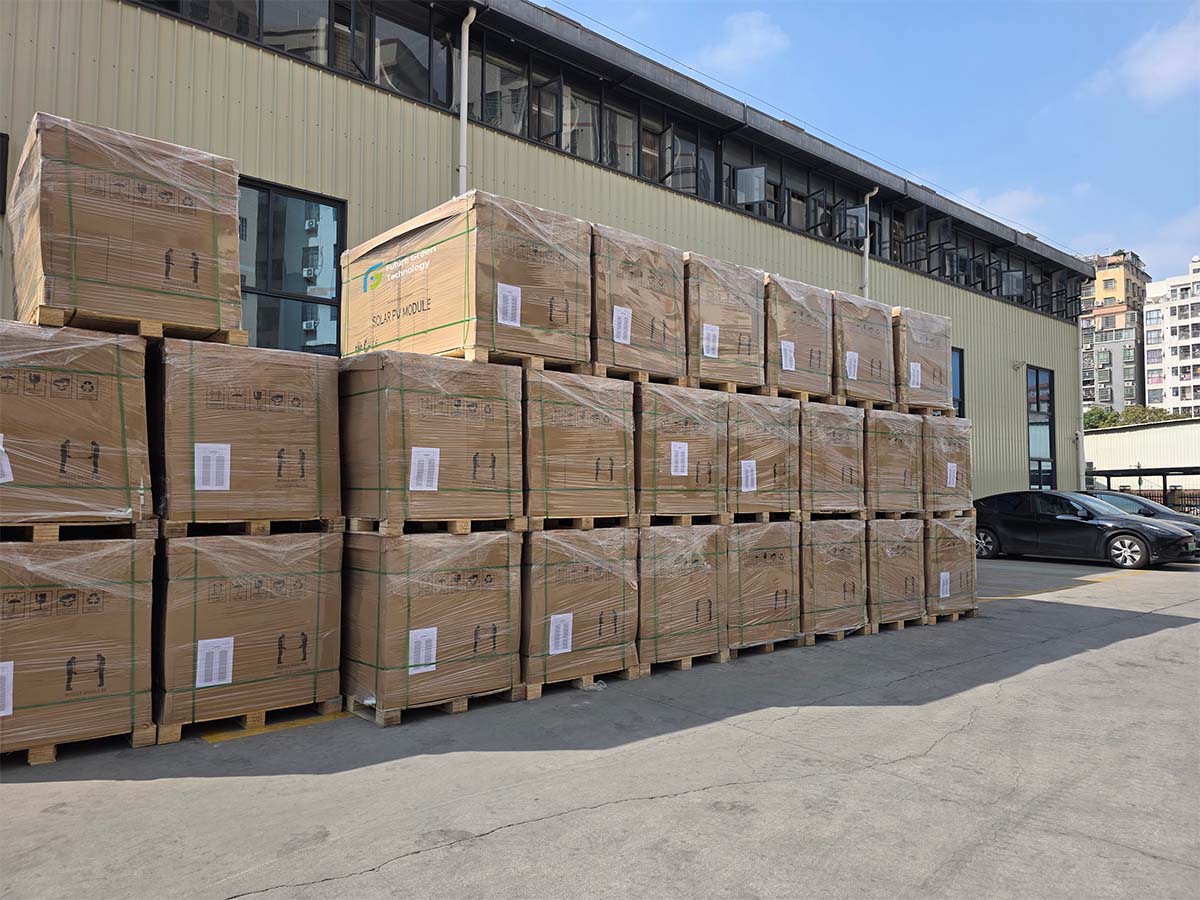

Packaging Image 1 Packaging Image 2

FAQ

Q1: What cell type and size does it use?
A1:
It uses N‑type monocrystalline half‑cut cells, mixed size 210–182mm (G12R), 96 cells in total.
Q2: What is the junction box rating?
A2:
IP68 waterproof junction box with 3 bypass diodes for anti‑hotspot protection.
Q3: What applications is it suitable for?
A3:
Ideal for commercial rooftops, utility farms, industrial roofs, solar carports, C&I and residential systems.
Q4: What are the key advantages?
A4:
Ultra‑low LID/PID, high bifacial gain, strong weather resistance, high efficiency, cost‑effective for medium‑large projects.
Q5: Is this a bifacial dual‑glass module?
A5:
Yes. It is bifacial + dual glass design, front and rear both 2.0mm coated tempered glass.
Q6: What are the structural advantages of the mixed-size cell design in this module?
A6:
The 210-182mm mixed cell design balances high power output, mechanical stability and installation compatibility.
Hot Tags :

435W-455W

Double-Side Power Generation

High Wattage Solar Panel

182mm Cell

435W Solar Panel

210-182mm Solar Cell
