Solar Panel

Solar Panel

Home Solar Panel

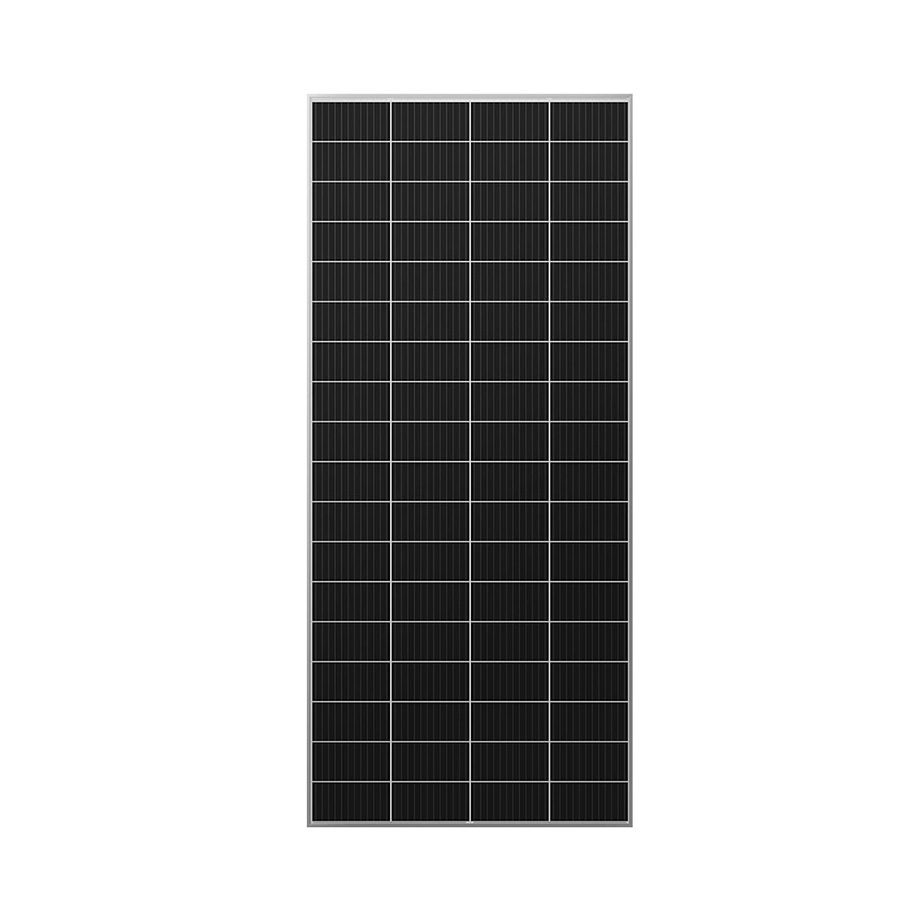

350W 360W 370W Customized Available Mono Solar Panels

350W 360W 370W Customized Available Mono Solar Panels
350W 360W 370W Customized Available Mono Solar Panels
350W 360W 370W Customized Available Mono Solar Panels

350W 360W 370W Customized Available Mono Solar Panels

Durable and High-Performance 350W 360W 370W Mono Solar Panels with Customizable Specifications, Optimized for Maximum Energy Output and Long Service Life

  • Item No :

    FG-360W

  • Power :

    350W-370W

  • Dimension :

    1980x880x30 mm

  • Min Order :

    100PCS

  • Efficiency(%) :

    21.24%

  • Weight :

    18.3kg

  • Cells Number :

    72
Inquiry Now
Download

Customized Available 350W 360W 370W Mono Solar Panels

350W 360W 370W

CORE PERFORMANCE FEATURES

01

Higher Efficiency N-Type Cells

Equipped with 72 (4x18) Monocrystalline Half-Cut N-Type Cells measuring 210x105 mm, delivering up to 21.24% module efficiency and superior energy yield.

02

Customizable All-Black Design

Features a nice premium appearance that blends seamlessly into architectural designs, significantly reducing light pollution and reflection.

03

Robust & Certified Reliability

High transmission low iron tempered ARC transparent glass. The junction box is IEC 62790 certified and IP68 approved with 3 bypass diodes for maximum safety.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm coated tempered glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The 350W-370W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Backyard Solar Systems
Community Microgrid PV
Base Station PV
Lake Floating Solar

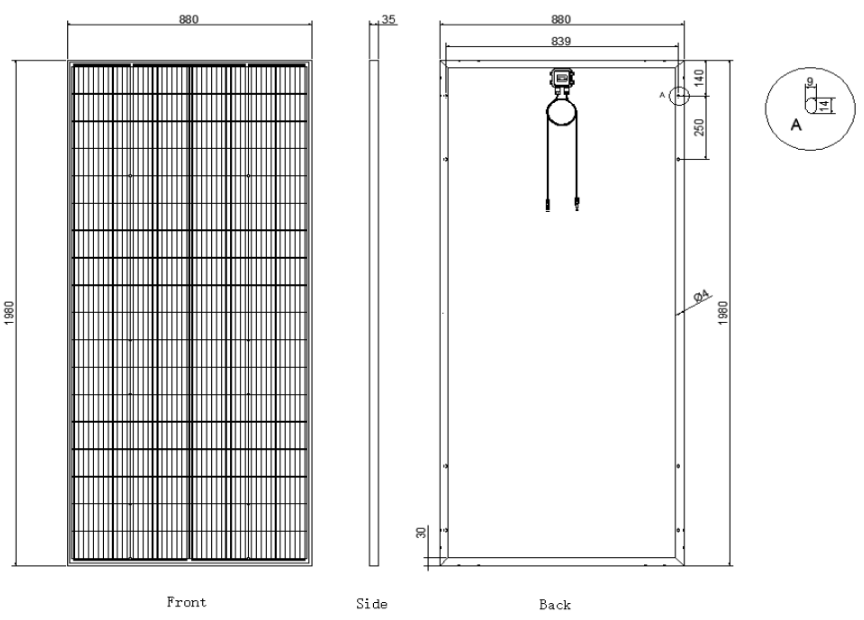

MECHANICAL DATA

Dimensions (L×W×T) 1980 x 880 x 30 mm
Cell Type Monocrystalline (Mono)
Number of Cells 72 (4x18)
Junction Box IP68 Rated (3 bypass diodes)
Output Cables 4.0mm², 250mm (+) / 350mm (-)
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized Aluminium Alloy
Mechanical Load Test 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FG350M-72 FG360M-72 FG370M-72
Standard Test Conditions STC STC STC
Peak Power (Pmax) 350W 360W 370W
Maximum Power Voltage (Vmp) 40.09V 40.72V 41.20V
Maximum Power Current (Imp) 8.74A 8.85A 8.99A
Open Circuit Voltage (Voc) 47.49V 47.85V 48.18V
Short Circuit Current (Isc) 9.26A 9.36A 9.47A
MODULE EFFICIENCY (%) 20.08% 20.66% 21.24%

PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: How do I choose the right solar panel wattage?
A1: Select wattage based on your daily power needs, installation space, budget and system type. High-wattage panels maximize output for small rooftops; 350W-370W panels offer incredible versatility for residential and off-grid setups.
Q2: What are Voc, Vmp, Isc?
A2: Voc: max voltage; Vmp: optimal working voltage; Isc: max current. Used for safe system matching, wiring, and component selection.
Q3: What is conversion efficiency?
A3: It's the percentage of sunlight converted to electricity. Higher = more power in small spaces. Balance efficiency, space and budget for best value.
Q4: What are the standard dimensions for this solar panel?
A4: For the 350W-370W series, the standard dimensions are 1980 x 880 x 30 mm.
Q5: What is operating temperature range for solar panel?
A5: -40°C to 85°C (-40°F to 185°F). Efficiency slightly drops in extreme heat; voltage may rise in cold conditions.
Q6: Does power output vary much under different light conditions?
A6: Output peaks in direct sunlight; drops significantly on cloudy days, winter, or with shading. High-quality panels perform better in low light.
