Solar Panel

Solar Panel

Home Solar Panel

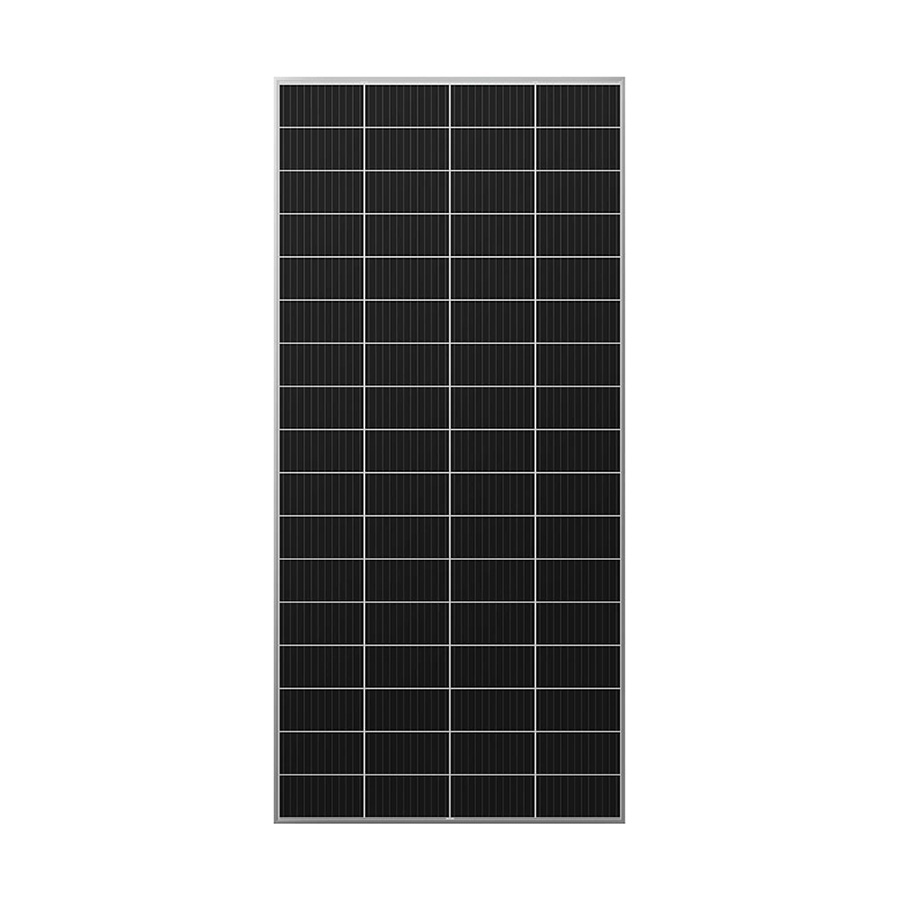

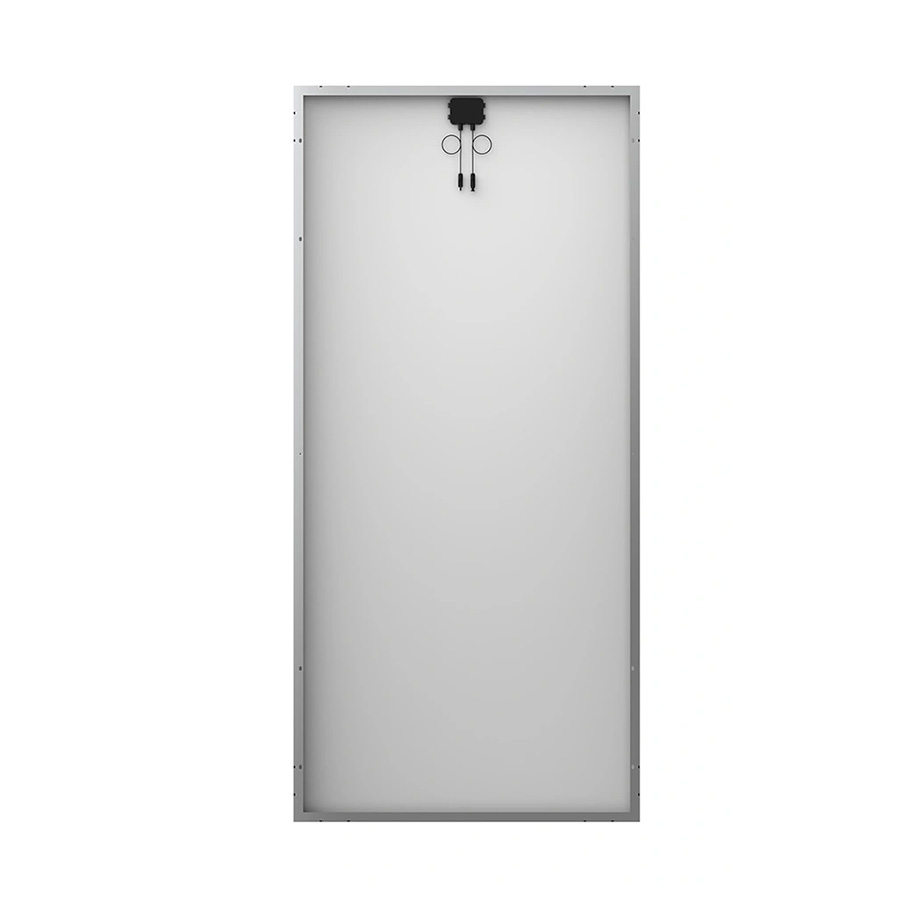

320W 330W 340W Customized Available Mono Solar Panels

320W 330W 340W Customized Available Mono Solar Panels
320W 330W 340W Customized Available Mono Solar Panels
320W 330W 340W Customized Available Mono Solar Panels

320W 330W 340W Customized Available Mono Solar Panels

Premium 320W 330W 340W Monocrystalline Solar Panels with Custom Power, Size and Electrical Parameters to Fit Your Specific Solar Project

  • Item No :

    FG-330W

  • Power :

    320W-340W

  • Dimension :

    1870×880×35 mm

  • Min Order :

    100PCS

  • Efficiency(%) :

    20.66%

  • Weight :

    17.28 kg

  • Cells Number :

    68
Inquiry Now
Download

68cells Solar Panel 320W 330W 340W Photovoltaic Panel

320W 330W 340W

CORE PERFORMANCE FEATURES

01

Higher Efficiency N-Type Cells

Equipped with 68 (4x17) Monocrystalline Half-Cut N-Type Cells measuring 210x105 mm, delivering higher efficiency and superior energy yield.

02

Customizable All-Black Design

Features a nice premium appearance that blends seamlessly into residential rooftops, significantly reducing light pollution and reflection.

03

Robust & Certified Reliability

High transmission low iron tempered ARC transparent glass. The junction box is IEC 62790 certified and IP68 approved with 3 bypass diodes for maximum safety.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front / Back Glass : 2.0 mm coated tempered glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 4.0mm², 250mm (+) / 350mm (-), Length Can Be Customized.
Connectors: Mc4 Compatible

IDEAL APPLICATIONS

The 320W-340W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Residential Rooftops
Off-Grid Power Stations
Commercial Facilities
Solar Carports

MECHANICAL DATA

Dimensions (L×W×T) 1670 x 880 x 30 mm
Cell Type Monocrystalline (Mono)
Number of Cells 68 (4x17)
Junction Box IP68 Rated (3 bypass diodes)
Output Cables 4.0mm², 250mm (+) / 350mm (-)
Front/Back Glass 2.0 mm coated tempered glass
Connectors MC4 Compatible
Frame Material Anodized Aluminium Alloy
Mechanical Load Test 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FG320M FG330M FG340M
Standard Test Conditions STC STC STC
Peak Power (Pmax) 320W 330W 340W
Maximum Power Voltage (Vmp) 36.22V 36.67V 37.30V
Maximum Power Current (Imp) 8.84A 9.01A 9.12A
Open Circuit Voltage (Voc) 42.91V 43.44V 43.83V
Short Circuit Current (Isc) 9.36A 9.54A 9.62A
MODULE EFFICIENCY (%) 19.45% 20.05% 20.66%



PACKAGING INFORMATION

01

International Standard Pallet Compatibility

Compatible with international standard logistics pallets, can be directly placed on shelves or loaded into containers without secondary palletizing.

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products. Ensure products maintain factory quality from production to project site and reduce on-site acceptance loss rate.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What is the MOQ and pallet packaging advantage?
A1:
The minimum order quantity is 100PCS. The module fits international standard pallets, no secondary palletizing needed, saving logistics cost and loading time.
Q2: What are the benefits of anodized aluminum alloy frame?
A2:
The anodized aluminum alloy frame is anti-corrosion, anti-rust, high strength and lightweight, effectively protecting the panel and improving overall wind and pressure resistance.
Q3: Why are bypass diodes installed inside the junction box?
A3:
It is equipped with 3 bypass diodes, which can reduce power loss caused by shadow shading, optimize working performance and extend the service life of the solar panel.
Q4:Can this solar panel be installed in solar carport projects?
A4:
Absolutely. With high mechanical load capacity and sturdy aluminum frame, it is very suitable for solar carport, rooftop and commercial distributed PV projects.
Q5: Does the panel have strict quality certification for the junction box?
A5:
Yes, the junction box complies with IEC 62790 certification standard, together with IP68 waterproof rating, adapting to rainy, humid and dusty outdoor environments.
Q6: Can I mix different wattages in one order?
A6:
Yes, we support mixed loading of 320W, 330W and 340W models, and can also provide unified customized packaging and logistics arrangement.
