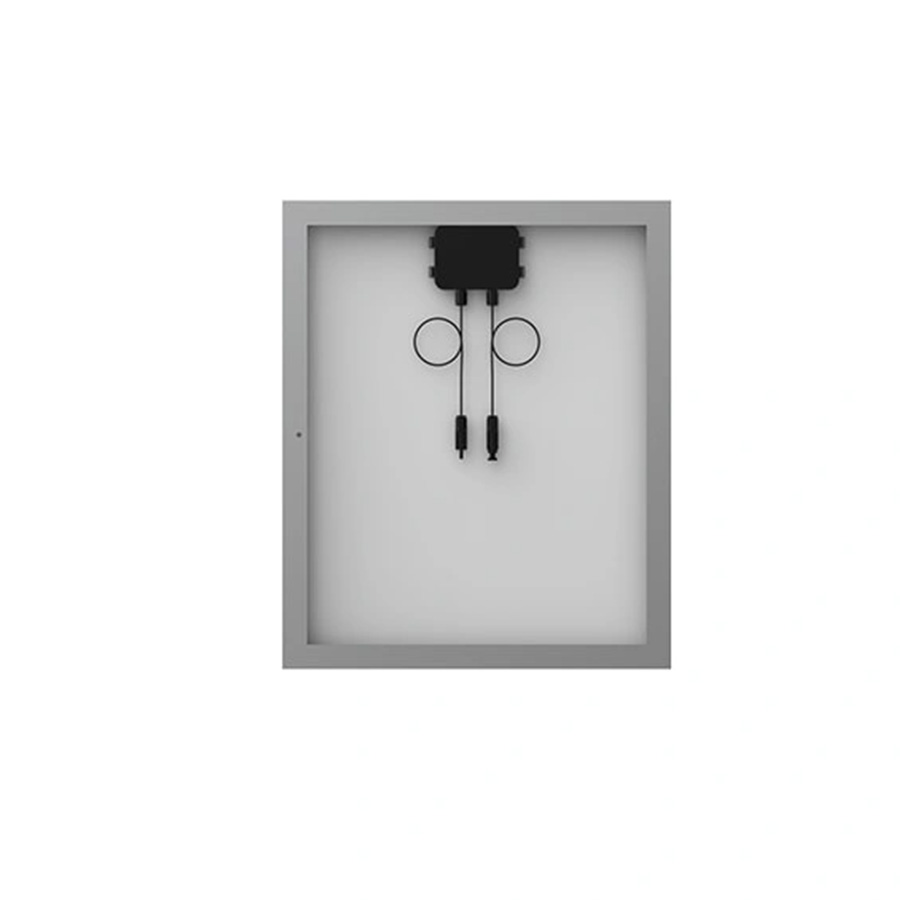

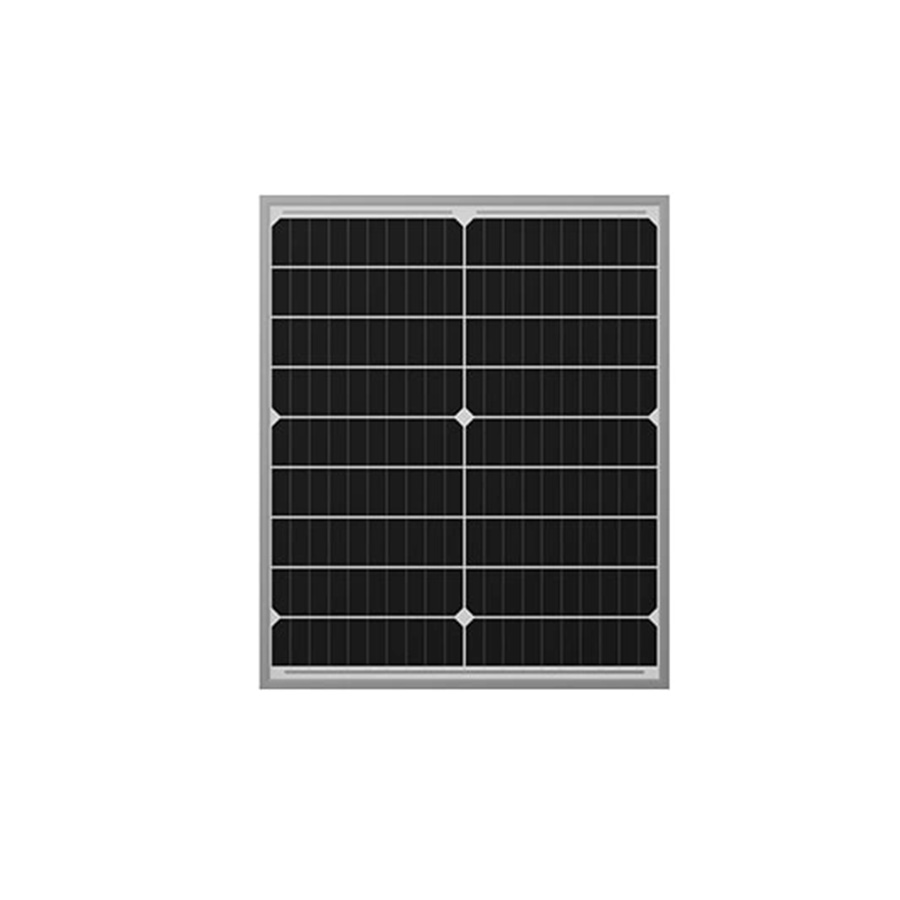

30W Customized Available Small Solar Panels

30W Customized Available Small Solar Panels
30W Customized Available Small Solar Panels
30W Customized Available Small Solar Panels

30W Customized Available Small Solar Panels

High Performance 30W Small Solar Panels Accept Customized Voltage, Current and Connector, Widely Used in Street Lamps, Garden Lights and Small Solar Projects

  • Item No :

    FG-30W

  • Power :

    30W

  • Dimension :

    470×390×25 mm

  • Min Order :

    100PCS

  • Efficiency(%) :

    16.37%

  • Weight :

    1.93kg

  • Cells Number :

    18
Inquiry Now
Download

18 Cells Solar Panel 30W Photovoltaic Panel

30W

CORE PERFORMANCE FEATURES

01

High Efficiency Mono Cells

Equipped with 18 (2x9) Monocrystalline cells measuring 182x45.5 mm, delivering consistent efficiency and superior energy yield for compact applications.

02

Compact & Durable Design

Features a highly compact 470x390mm footprint that blends seamlessly into small-scale setups, off-grid systems, and portable power requirements.

03

Robust & Certified Reliability

Built with 3.2mm high transmission low iron tempered glass and an anodized aluminium alloy frame. The junction box is IP65/IP67 rated for maximum environmental protection.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front Glass: 3.2mm high transmission low iron, tempered glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: Without cables and connector
Junction Box: IP65/IP67

IDEAL APPLICATIONS

The 30W series is highly versatile, providing optimal power generation for compact grid-tied and off-grid solar projects:

Off-Grid Lighting
Portable Power
IoT & Sensors
Marine & RV

MECHANICAL DATA

Dimensions (L×W×T) 470 x 390 x 25 mm
Weight 1.93 kg
Cell Type 182*45.5 Mono
Number of Cells 18 (2x9)
Junction Box IP65/IP67
Output Cables Without cables and connector
Front Glass 3.2mm high transmission low iron, tempered glass
Frame Material Anodized Aluminium Alloy
Max Wind Load / Snow Load 2400Pa / 5400Pa

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FG 30M-18
Model Type FG 30M-18
Peak Power (Pmax) 30W
Maximum Power Voltage (Vmp) 9.83V
Maximum Power Current (Imp) 3.06A
Open Circuit Voltage (Voc) 11.47V
Short Circuit Current (Isc) 3.22A
MODULE EFFICIENCY (%) 16.37%

TEMPERATURE & MAXIMUM RATING

RATING ITEM VALUE
Maximum System Voltage (V) 1000
Maximum Series Fuse Rating (A) 10
Power Tolerance 0~+3%
Pmax Temperature Coefficients (W/°C) -0.350%
Voc Temperature Coefficients (V/°C) -0.270%
Isc Temperature Coefficients (A/°C) +0.048%
NOCT Nominal Operating Cell Temperature (°C) 45±2
Operating and Storage Temperature (°C) -40 ~ +85

PACKAGING INFORMATION

01

High Volume Container Capacity

Designed for maximum logistics efficiency.
20FT Container: 11 Packages / 4340 PCS
40HQ Container: 21 Packages / 10080 PCS

02

Customized Professional Packaging Service

Provide customized industrial packaging solutions according to different scenario requirements.

03

Professional Transportation Protection

All packaging solutions have passed professional tests including mechanical load, transportation vibration and temperature-humidity cycle, complying with international transportation protection standards for photovoltaic products.

FAQ

Q1: What specific quality control tests does each 30W panel undergo before leaving the factory?
A1:
Each panel goes through five mandatory checks: (1) Electroluminescence (EL) testing to find micro-cracks, (2) wet leakage current test (insulation under water spray), (3) flash test to verify exact I-V curve (30W±3%), (4) diode function test, and (5) visual inspection for frame alignment and glass bubbles. We provide test reports for bulk orders.
Q2: Can this 30W panel survive a hailstorm or accidental impact (e.g., a falling branch)?
A2:
Yes. The 3.2mm tempered glass is tested to withstand 25mm diameter hailstones at 80 km/h (50 mph) , meeting IEC 61215 standard. For higher risk areas, we offer an optional upgrade to 4.0mm glass with a reinforced frame (adds 0.8kg weight). This is not bulletproof, but it handles typical severe weather.
Q3: Does this 30W panel carry any certifications specifically required for schools, government projects, or export to certain regions?
A3:
Yes. Beyond standard CE and RoHS, we can provide panels with TÜV SÜD certification (Europe), FCC (USA – for electromagnetic interference), and UKCA (UK market). For school projects, we also supply a material safety data sheet (MSDS) confirming no hazardous substances. Specify your target region when inquiring.
Q4:Can I use this 30W panel to charge the battery for an automatic chicken coop door that opens and closes twice daily?
A4:
Yes, and it's an excellent match. A typical 12V coop door motor draws about 1-2 amp-hours per full open/close cycle. A 30W panel generates roughly 8-12 amp-hours per day (depending on sun). With a small 12V, 4.5Ah or 7Ah battery and a 5A PWM controller, it easily handles multiple cloudy days. We can pre-terminate the panel with ring terminals for direct bolt-on connection to your battery. Specify "coop door kit" when ordering.
Q5: Can I install this panel near the ocean (salt spray) or on a poultry farm (ammonia from bird waste)?
A5:
The standard model is not recommended for highly corrosive environments. Standard aluminum frames and tinned copper cables will corrode over time (1-3 years in severe cases). We offer a "high corrosion resistance" customization including: (1) thicker anodized aluminum frame (25μm vs standard 15μm), (2) fully potted IP68 junction box, and (3) tinned copper cables with anti-corrosion additive (prevents "black wire" corrosion). Specify "salt fog / ammonia resistant" version for coastal or farm projects.
Q6: If I customize the connectors, cable length, or bezel color, will it alter the panel's core quality, warranty, or electrical performance?
A6:
No. All customizations do not affect the basic electrical performance, material quality, or standard warranty terms. The core laminated part (cells, EVA encapsulant, backsheet, glass) is produced identically on the same production line. Whether you choose MC4 connectors, DC5521 plugs, ring terminals, or bare wire ends, the panel still enjoys the 5-year materials and workmanship warranty and the 25-year linear power output warranty. Customization only changes peripheral accessories and appearance, not the cell quality grade, soldering process, or factory test standards.
