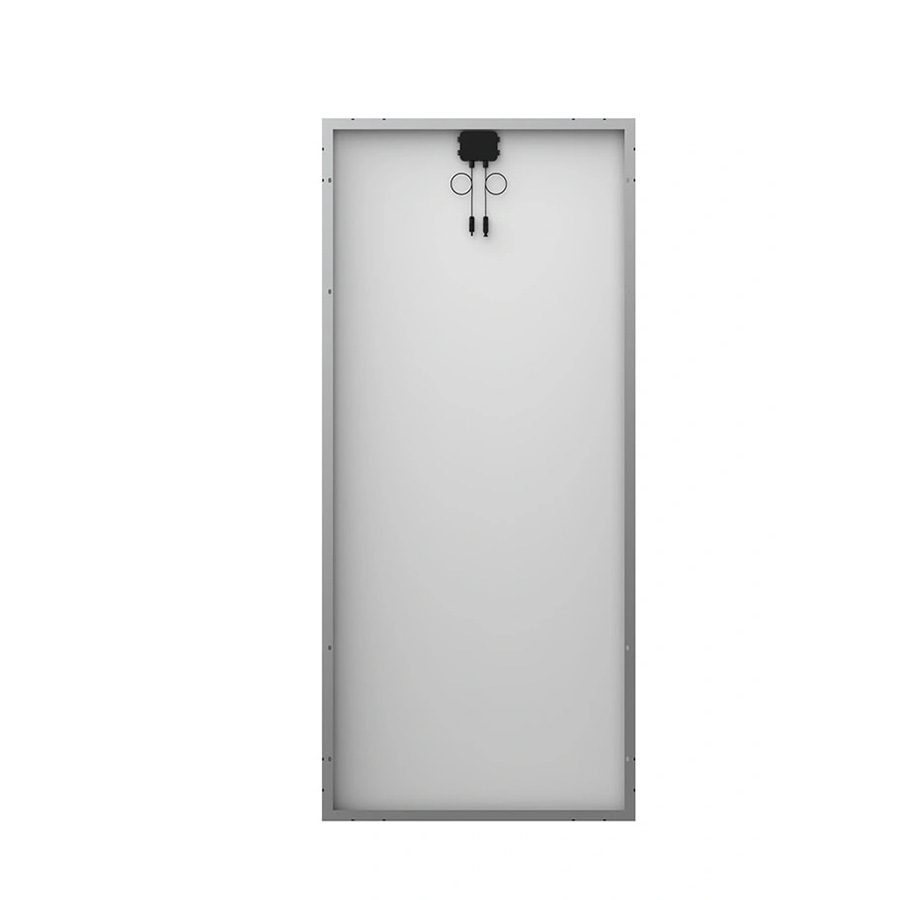

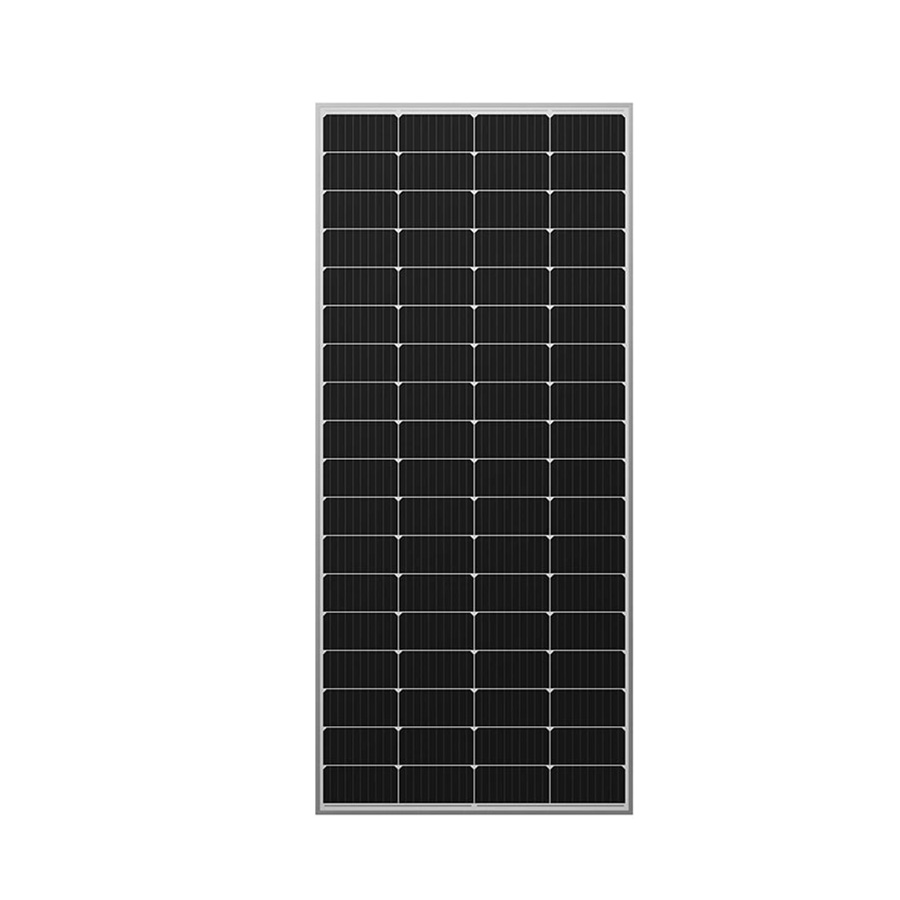

High Performance 210W–230W Monocrystalline Solar Modules, Fully Customizable to Fit Your Project Size, Voltage and Installation Requirements
Item No :
FG-220WPower :
210W-230WDimension :

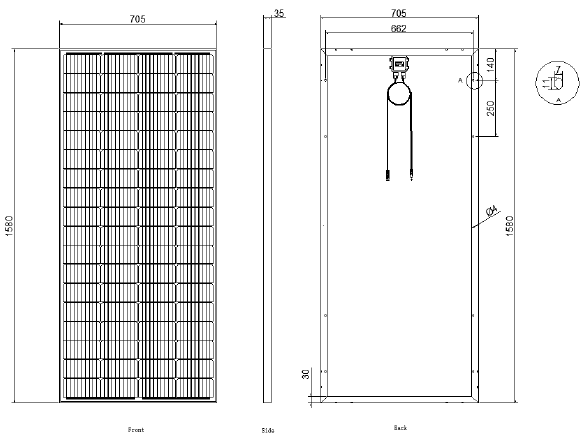

1580×705×35 mmMin Order :
100PCSEfficiency(%) :
20.8%Weight :
11.69 kgCells Number :
7272cells Solar Panel 210W 220W 230W Photovoltaic Panel
Equipped with 72 (4x18) Monocrystalline Cells measuring 166x83 mm, delivering high efficiency and superior energy yield up to 20.8%.
Maintains excellent performance in extreme conditions with an operating temperature range of -40°C to +85°C and an outstanding Pmax temperature coefficient of -0.350%/°C.
Built with 3.2mm high transmission low iron tempered glass. The junction box is IP65/IP67 approved for maximum safety and weather resistance.
Front Glass : 3.2 mm high transmission low iron, tempered glass
Frame: Anodized Aluminium Alloy
Output Cables: 4mm² cable 90cm+mc4
Connectors: MC4 Compatible
The 210W-230W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:
* STC: irradiance 1000 W/m², AM 1.5G, and cell temperature of 25°C
Optimized for efficient sea freight with a capacity of 7 Packages / 484 PCS per standard 20FT container.
Maximum bulk shipping capacity containing 14 Packages / 1260 PCS per 40HQ container, significantly reducing logistics costs per unit.
All packaging solutions have passed professional tests complying with international transportation protection standards for photovoltaic products. Ensures products maintain factory quality from production to project site.
