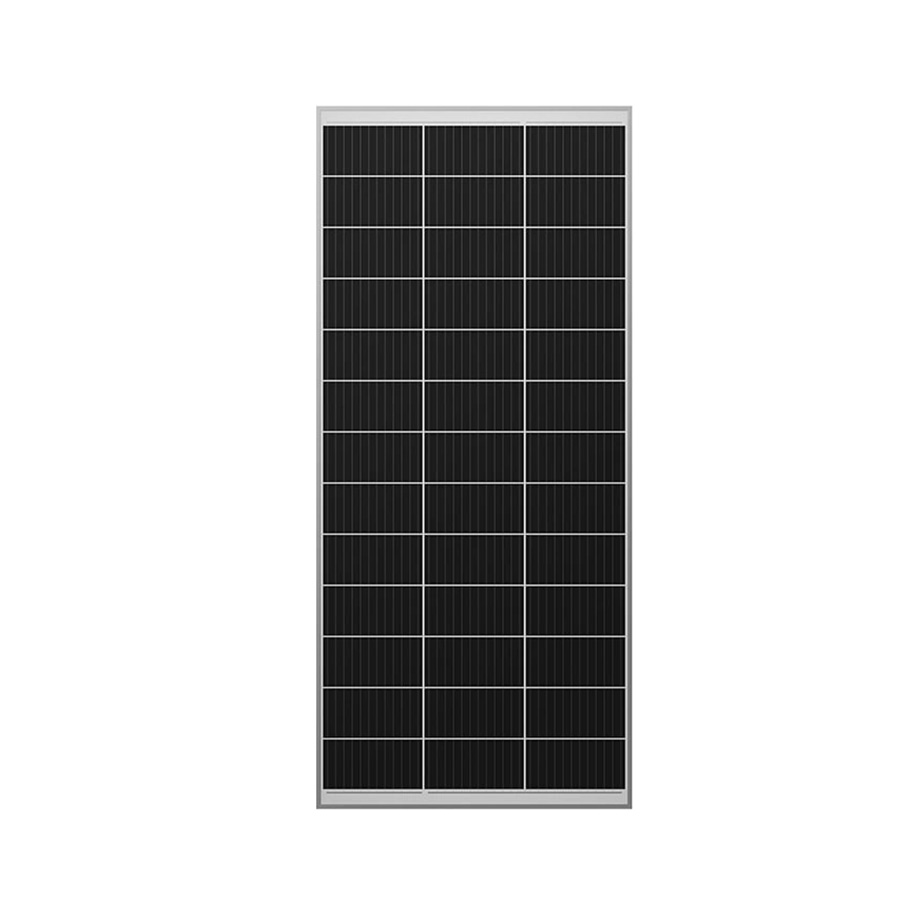

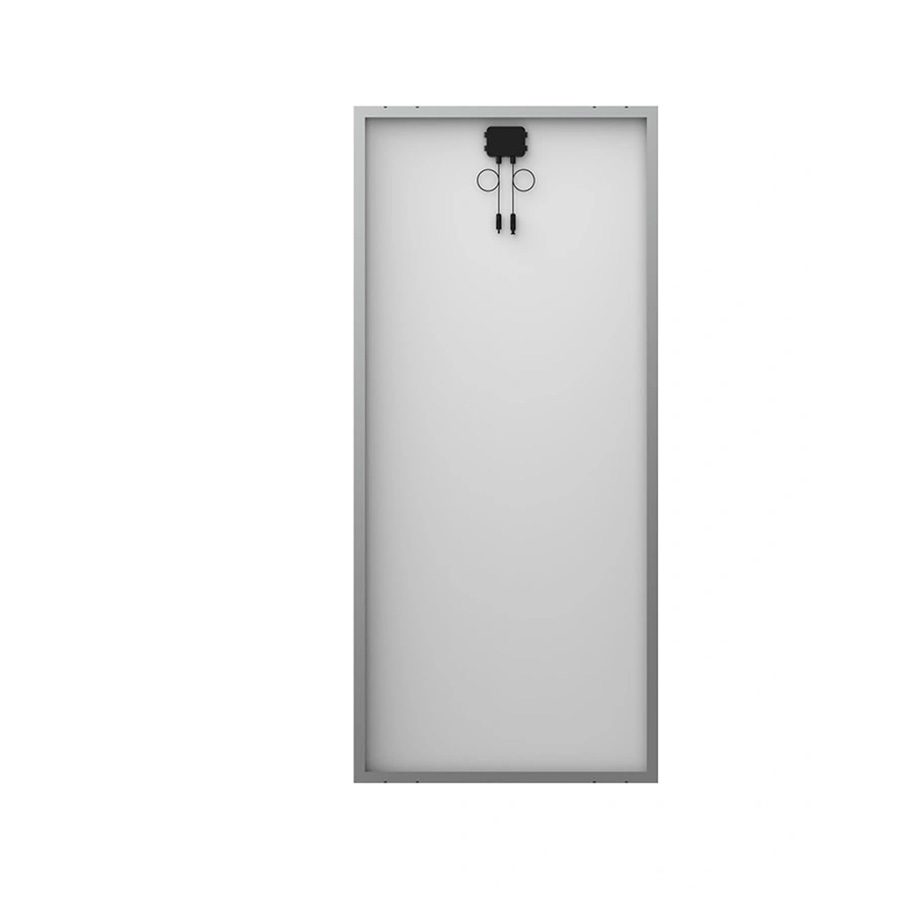

180W 190W 200W Customized Available Mono Solar Panels

180W 190W 200W Customized Available Mono Solar Panels
180W 190W 200W Customized Available Mono Solar Panels
180W 190W 200W Customized Available Mono Solar Panels

180W 190W 200W Customized Available Mono Solar Panels

Premium 180W 190W 200W Monocrystalline Solar Panels with Custom Power, Size and Electrical Parameters to Fit Your Specific Solar Project

  • Item No :

    FG-190W

  • Power :

    180W-200W

  • Dimension :

    1485×668×30 mm

  • Min Order :

    100PCS

  • Efficiency(%) :

    20.8%

  • Weight :

    10.5 kg

  • Cells Number :

    39
Inquiry Now
Download

39cells Solar Panel 180W 190W 200W Photovoltaic Panel

180W 190W 200W

CORE PERFORMANCE FEATURES

01

High Efficiency Mono Cells

Equipped with 39 (3x13) Monocrystalline Cells measuring 210x105 mm, delivering high efficiency and superior energy yield up to 20.8%.

02

Optimized Temperature Ratings

Maintains excellent performance in extreme conditions with an operating temperature range of -40°C to +85°C and an outstanding Pmax temperature coefficient of -0.350%/°C.

03

Robust & Certified Reliability

Built with 3.2mm high transmission low iron tempered glass. The junction box is IP65/IP67 approved for maximum safety and weather resistance.

PRODUCT SPECIFICATIONS

04

Glass & Frame

Front Glass : 3.2 mm high transmission low iron, tempered glass
Frame: Anodized Aluminium Alloy

05

Cables & Connectors

Output Cables: 2.5mm² cable 50cm+mc4
Connectors: MC4 Compatible

IDEAL APPLICATIONS

The 180W-200W series is highly versatile, providing optimal ROI for various grid-tied and off-grid solar projects:

Residential Rooftops
Off-Grid Power Stations
Commercial Facilities
Solar Carports

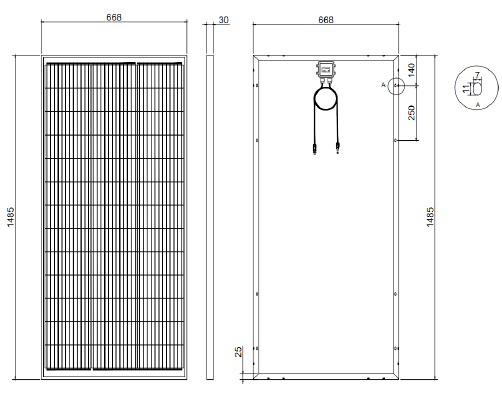

MECHANICAL DATA

Dimensions (L×W×T) 1485 x 668 x 30 mm
Cell Type 210x105 Mono
Number of Cells 39 (3x13)
Weight 10.5 kg
Junction Box IP65 / IP67
Output Cables 2.5mm² cable 50cm+mc4
Front Glass 3.2mm high transmission low iron
Frame Material Anodized Aluminium Alloy
Max Wind / Snow Load 2400Pa / 5400Pa
Max System Voltage 1000V

ELECTRICAL PARAMETERS

* STC: irradiance 1000 W/m², AM 1.5G, and cell temperature of 25°C

PARAMETER FG180M-39 FG190M-39 FG200M-39
Standard Test Conditions STC STC STC
Peak Power (Pmax) 180W 190W 200W
Maximum Power Voltage (Vmp) 21.79V 21.86V 22.45V
Maximum Power Current (Imp) 8.27A 8.7A 8.91A
Open Circuit Voltage (Voc) 24.37V 25.62V 26.01V
Short Circuit Current (Isc) 8.72A 9.19A 9.41A
MODULE EFFICIENCY (%) 18.14% 18.87% 20.80%



PACKAGING WAY

01

20FT Container Loading

Optimized for efficient sea freight with a capacity of 7 Packages / 672 PCS per standard 20FT container.

02

40HQ Container Loading

Maximum bulk shipping capacity containing 15 Packages / 1560 PCS per 40HQ container, significantly reducing logistics costs per unit.

03

Professional Transportation Protection

All packaging solutions have passed professional tests complying with international transportation protection standards for photovoltaic products. Ensures products maintain factory quality from production to project site.

Packaging Image 1 Packaging Image 2

FAQ

Q1: What is the advantage of mono solar cells compared to polycrystalline cells?
A1:
Mono cells offer higher conversion efficiency (typically 18–22%) , meaning more power per square foot. They also perform slightly better in low-light conditions (e.g., early morning or cloudy weather) and have a uniform black appearance.
Q2: What exactly can be customized on these solar panels?
A2:
Common customization options include: cable length and connector type (e.g., MC4-compatible), frame color and material (silver/black anodized aluminum), junction box diode configuration, and OEM branding (your logo, label, and packaging). Contact sales for a full list of options.
Q3: Which key safety and quality certifications do these panels carry?
A3:
Our panels typically carry international certifications such as CE, TÜV, and IEC 61215 / IEC 61730, ensuring they meet strict standards for weather resistance, fire safety, and electrical insulation. Please check the datasheet or contact us for specific certificates.
Q4: How do shading (e.g., leaves, bird droppings) or high temperatures affect performance?
A4:
Built-in bypass diodes significantly reduce the impact of partial shading. However, long-term shading will still reduce output. Power output decreases with high temperatures (temperature coefficient approx. -0.35%/°C). Good ventilation behind the panel helps minimize this effect.
Q5: How do I clean and maintain these solar panels?
A5:
Clean the surface every 3–6 months with a soft cloth or sponge and plain water. Avoid pressure washers, abrasives, or strong alkaline/acidic cleaners. Rainwater is sufficient in most regions. Periodically check that the junction box and connectors are tight and corrosion-free.
Q6: What are the physical dimensions and weight? Do they fit standard mounts?
A6:
A typical 180W-200W mono panel measures about 1480mm × 670mm × 35mm (58.3″ × 26.4″ × 1.4″) and weighs around 11–13 kg (24–29 lbs). The frame comes with 4 or 6 pre-drilled mounting holes at standard spacings, compatible with most racking systems, roof hooks, and ground mounts.
