Whether you are designing a utility-scale solar farm in the Middle East, a commercial facility in South America, or a residential rooftop array in Southeast Asia, selecting the right photovoltaic (PV) components is critical. At Future Green Technology Co., Ltd., we ensure our global clients have access to the most advanced and cost-effective technologies available.
Today, M10, G12, and G12R represent the core standards within the PV industry regarding silicon wafer and solar cell dimensions. The physical dimensions, power output, electrical characteristics, and even the international transportation and local installation costs of solar panels are largely determined by the size of the solar cells utilized within them.
The emergence of these three standards signifies the PV industry's evolutionary journey toward achieving higher power outputs, lower Levelized Cost of Electricity (LCOE), and optimized global logistics efficiency. The following provides a detailed breakdown and comparison of their key differences to help you make the best procurement decision for your region:
Click the timeline below to see how technology drives efficiency.
The era of ultra-high power. G12 (210mm) maximizes ROI for utility-scale solar farms. The newer G12R (rectangular) optimizes the width to 1134mm, perfectly utilizing 40HC shipping container space while maintaining massive power output.
M10 (182mm Series):
Dimensions: Wafer side length measures 182mm × 182mm (square with chamfered corners).
Background: Introduced by the "M10 Alliance," led by companies such as LONGi, Jinko Solar, and JA Solar.
Characteristics: A highly mature and standardized dimension that strikes an optimal balance between high power output and practical module dimensions; it currently stands as one of the absolute mainstream standards in the market.
G12 (210mm Series):
Dimensions: Wafer side length measures 210mm × 210mm (square with chamfered corners).
Background: Introduced by the "600W+ Alliance," led by companies such as TCL Zhonghuan, Trina Solar, and Risen Energy.
Characteristics: Features a surface area approximately 33% larger than that of the M10 series. By utilizing a larger light-receiving area, it achieves ultra-high power output per individual module (easily surpassing 600W, or even 700W).
G12R (210R Rectangular Series):

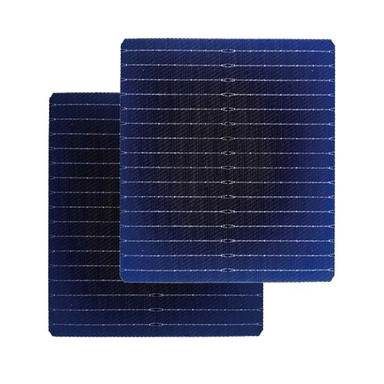

Dimensions: Wafer side dimensions measure 210mm × 182mm (rectangular).
Background: An innovative dimension introduced in recent years specifically to maximize the utilization of international shipping container space.
Characteristics: It combines the length of the G12 series (210mm) with the width of the M10 series (182mm). Essentially, it is equivalent to taking a standard 210mm wafer and trimming one of its edges to create a rectangular shape. This design retains the high-power DNA of the 210 technology while keeping the module width at 1134mm (consistent with the M10 module width), making it perfectly compatible with 40-foot high-cube containers.
| Comparison Dimensions | M10 (182mm) | G12 (210mm) | G12R (210R Rectangle) |
|---|---|---|---|
| Silicon Wafer Shape | Square (182×182) | Square (210×210) | Rectangle (210×182) |
| Typical Module Width | 1134 mm | 1303 mm | 1134 mm |
| Single-Unit Power | High (~550W - 580W) | Extremely High (~600W - 700W+) | Very High (~580W - 610W) |
| Electrical Characteristics | High voltage, low current (Operating current ~13-14A) |
Low voltage, high current (Operating current ~17-18A) |
Medium-high voltage/current (Operating current ~15-16A) |
| Inverter Matching | Compatible with almost all mainstream inverters | Requires high-current supported inverters. | Compatible with most modern inverters |
| Logistics & Packing Rate | Excellent (standard packaging) | Good (packing is limited due to the wide width). | Excellent (Designed for 40HC container fill) |
| Installation & Handling | Suitable for single/double person carrying, good for rooftops | Large size/weight makes it suitable for ground-mounts, difficult for roofs. | Width matches M10, maintaining good roof installation friendliness. |
| BOS Cost Reduction | Better | Best (lowest possible cost for brackets and cables) | Between M10 and G12 |
✓ Pros: The industry chain is extremely mature, and the yield rate is exceptionally high. Its voltage and current design is highly rational, resulting in minimal line loss and relatively low heat generation. With a module width of just 1134mm, its weight and dimensions are ideally suited for residential and commercial & industrial (C&I) rooftop installations across European and Asian markets, ensuring safer handling and installation for workers.
✗ Cons: In ultra-large-scale ground-mounted power plants, the power output per module is lower than that of the 210 series, leading to slightly higher BOS (Balance of System) costs—such as those for mounting structures and cabling.
✓ Pros: The undisputed "King of Power." In large-scale centralized ground-mounted PV power plants (utility-scale projects in regions like Africa and the Middle East), utilizing 210 modules can drastically reduce the steel consumption for mounting structures, the number of foundation piles, and the length of DC cabling, thereby significantly lowering the total project LCOE.
✗ Cons: The modules are extremely wide (exceeding 1.3 meters) and heavy (often exceeding 33kg); even handling them with two people carries some risk, making them highly unsuitable for pitched rooftops. Their high-current characteristics introduce a higher risk of line loss and localized hot spots, necessitating strict compatibility with high-current inverters.
✓ Pros: This represents the perfect compromise between global shipping efficiency and practical utility. The door height of a standard 40-foot high-cube (40HC) container is approximately 2.58 meters. The 1134mm width of both M10 and G12R modules allows two pallets to be stacked vertically inside the container, resulting in exceptionally high space utilization for international sea freight. The G12R combines the ease of handling characteristic of the M10 format with the power-boosting advantage of the 210mm cell length (delivering an additional 20–30W compared to M10 modules), offering exceptional cost-effectiveness.
✗ Cons: As a relatively new standard, its early-stage supply chain was not as standardized as the M10; however, major industry players have now begun to aggressively scale up their adoption of rectangular silicon wafers.
At Future Green, our engineering team continuously integrates the most advanced wafer technologies into our Solar Panels and Off-Grid Systems to ensure maximum yield for your local environment.
