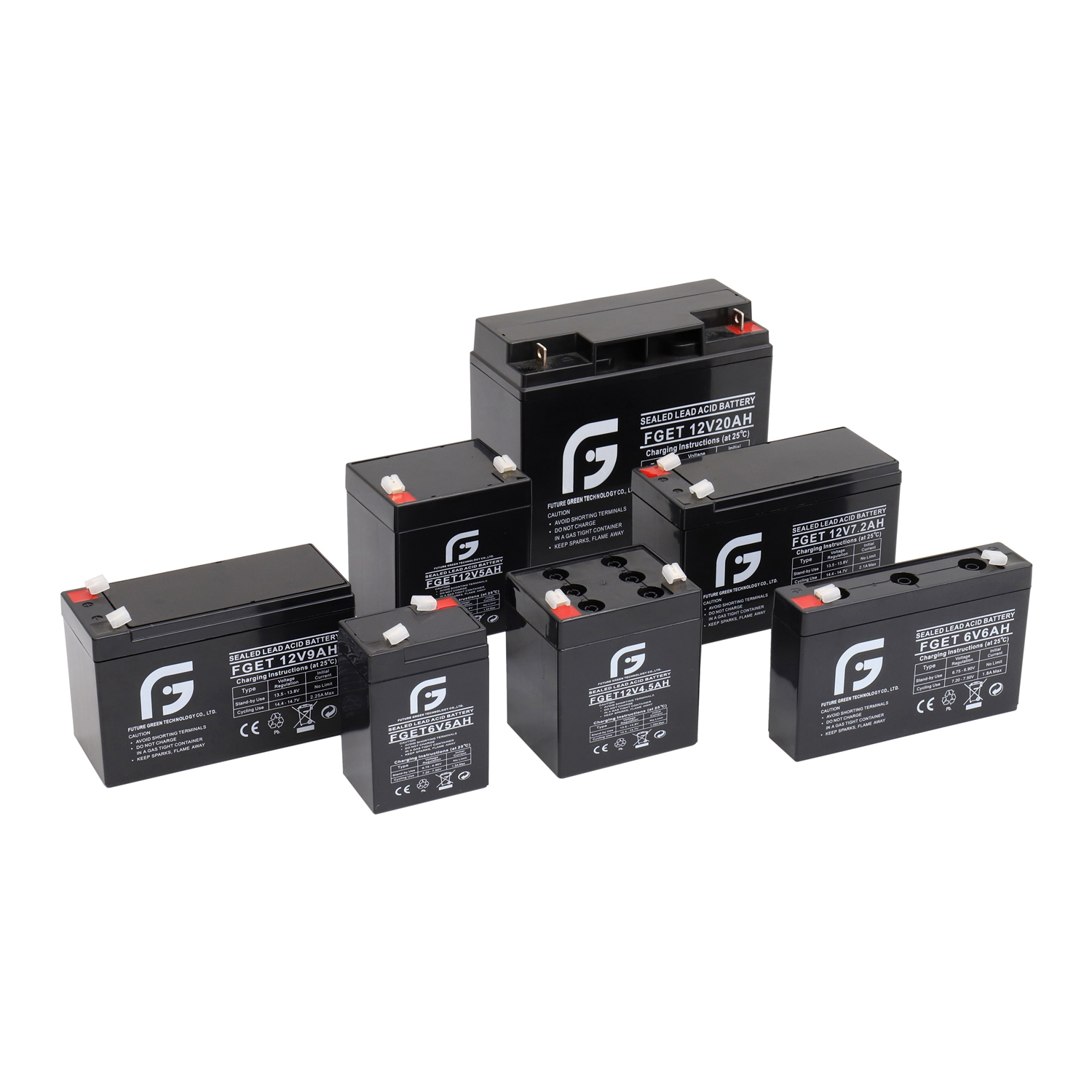

The FGET sealed lead acid rechargeable battery (VRLA battery) is leak-proof and maintenance-free. The Superiority of VRLA battery is derived from its uniquely efficient oxygen recombination technology.
Nominal Voltage | 12V | Discharge Temperature | -15~50ºC |
Nominal Capacity (20 hour rate) | 24Ah | Charge Temperature | 0~40ºC |
Number of Cells | 6cells | Storage Temperature | -15~40ºC |
2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
20 hour rate (0.05C, 10.8V) | 24Ah | Fully Charged battery at 25ºC (77° F) | <16mΩ |
5 hour rate (0.165C, 10.8V) | 21.5Ah | Max. Discharge Current (7 min) | 71.94A |
1 hour rate (0.55C, 10.5V) | 19.44Ah | Short Circuit Current (10 sec) | 239.8A |
3. Capacity affected by Temperature (20 hour rate) | 7. Shelf Life at 25ºC (77° F) | ||
40ºC (104° F) | 103% | Capacity after 3 month storage | 91% |
25ºC (77° F) | 100% | Capacity after 6 month storage | 82% |
0ºC (32° F) | 85% | Capacity after 9 month storage | 73% |
-15ºC (5° F) | 65% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) | ||
Length | 166mm | Cyclic use | 14.4~14.9V |
Width | 178mm | Maximum charging current | 7.2A |
Height | 125mm | Temperature compensation | -30mV/ºC |
Total Height | 125mm | Float use | 13.6~13.8V |
Reference Weight | 7.5kg | Temperature compensation | -20mV/ºC |
Email: info@futuregreenbattery.com
Mobile/Wechat/WhatsApp: +8614737539687
Mobile/Wechat/WhatsApp: +8618718914921
Generally Features:
1. GEL Technology
The success of DG batteries comes from the internationally superior Gel technology. It is ideal for standby or frequent cyclic discharge applications under extreme environments
2. Long Life Time
Specially designed for telecommunication use with 10+ years of design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years of design life. By using strong grids, high-purity lead, and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclic discharge use and can deliver 400 cycles at 100% DOD.
3. Excellent Recovery from Deep Cycle
Unique technical processes are used in the grid alloy and electrolyte additive, in this case, the battery can be recharged after being over-discharged.
Battery Use and Maintenance:
1. Please use constant-voltage charge.2. In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3. In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4. Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5. Please do not use it near the heat source and open flame.
6. Please keep it at low temperature. Please change it while there is liquid leaking or damage.
